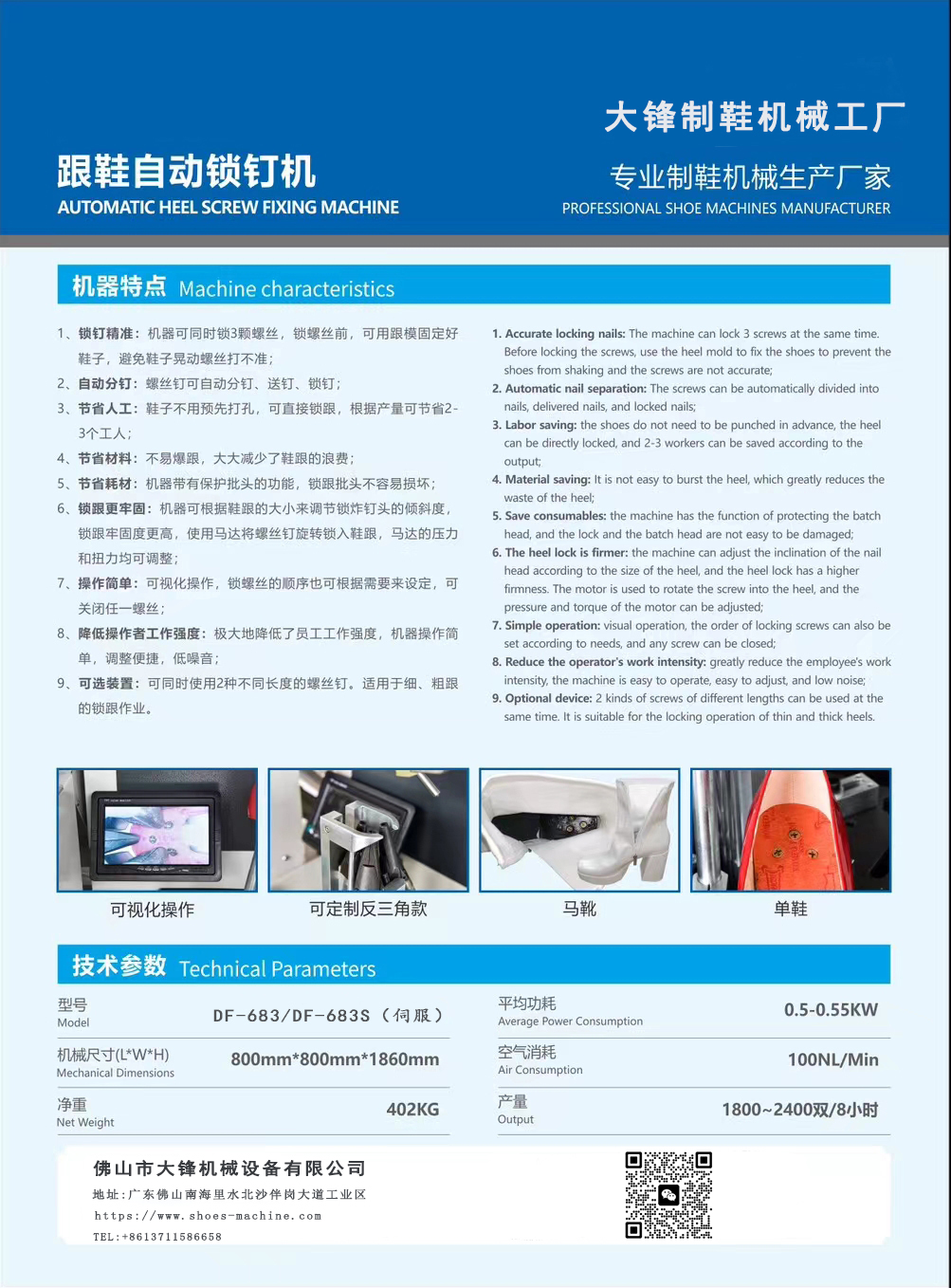

Leather Shoe Fully Automatic Heel Screw Heel Nailing Fixing Machine
- Leather Shoe Fully Automatic Heel Screw Heel Nailing Fixing Machine
- Accurate locking nails: The machine can lock 3 screws at the same time. Before locking the screws, use the heel mold to fix the shoes to prevent the shoes from shaking and the screws are not accurate;
- Automatic nail separation: The screws can be automatically divided into nails, delivered nails, and locked nails;
- Labor saving: the shoes do not need to be punched in advance, the heel can be directly locked, and 2-3 workers can be saved according to the output
- Material saving: It is not easy to burst the heel, which greatly reduces the waste of the heel;
- Save consumables: the machine has the function of protecting the batch head, and the lock and the batch head are not easy to be damaged;
- The heel lock is firmer: the machine can adjust the inclination of the nail head according to the size of the heel, and the heel lock has a higher firmness. The motor is used to rotate the screw into the heel, and the pressure and torque of the motor can be adjusted;
- Simple operation: visual operation, the order of locking screws can also beset according to needs, and any screw can be closed;
Reduce the operator's work intensity: greatly reduce the employee's work intensity, the machine is easyto operate, easy to adjust and low noise;
- Optional device: 2 kinds of screws of different lengths can be used at the same time. It is suitable for the locking operation of thin and thick heels.
|
Model |
Size |
N.W |
Power |
Air Consumption |
Output |
Voltage |
|
Df-683 |
800*800*1860mm |
420kg |
0.5kw |
10nl/Min |
1800-2400pairs/8h |
220v/50hz |
