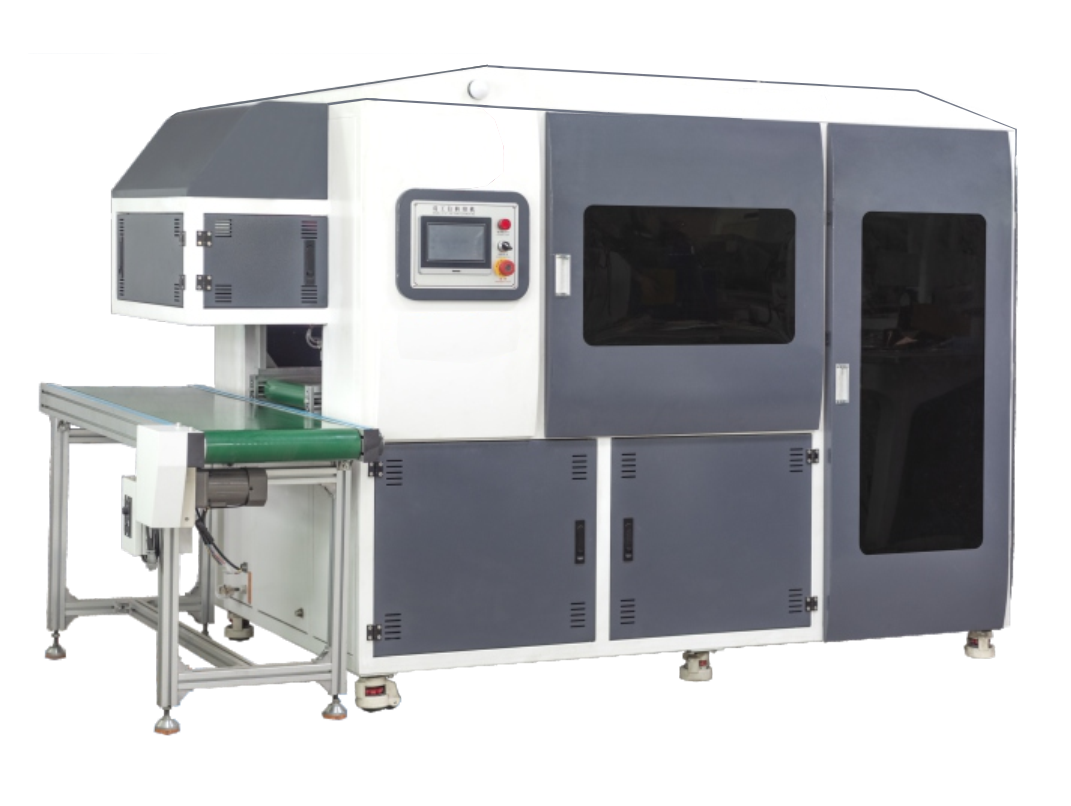

Double Station Automatic Shoe Insole Heat Transfer Label Machine for Shoe making
Double Station Automatic Shoe Insole Heat Transfer Label Machine for Shoe making
Double Station Automatic Shoe Insole Heat Transfer Label Machine for Shoe making
The human-machine interface is intelligent, which can be set in many national languages and operate intuitively.
High precision fiber- position system auto location of transfer paper, position accuracy to 0.04mm.
roll to roll transfer paper ,convenient management , keep the environment clean and tidy.
Use the one-to –one locate mode ,manual printing transfer paper also is suitable, there is no any error because the distance different.
High efficiency, the maximum yield 1000pairs/hour, one worker can handle 2to 3pcs machine at the same time.
Temperature，pressure pressing time can be adjusted according to the press effect, and also can set the trouble alarm of
temperature trouble alarm, pneumatic pressure to ensure the product quality.
Multi-purpose machine, in addition to trademark thermal transfer, but also only need to change the hot stamping mold can be bronzing operation, in bags, packaging and other industries are also applicable.
|
Model |
Size |
Temperature range |
Power |
capacity |
Air pressure |
Voltage |
N.W |
G.W |
|
DF-879 |
2700×1400×1700mm |
30-280℃ |
2.5KW |
1000pairs/1hr |
0.5Mpa |
220V |
690KG |
780KG |
|
1400×400×750mm |
