Automatic CNC Oscillating Knife Cutting Machine Digital Vibrating Blade Fabric Leather Shoe CNC Cutting Machine
Automatic CNC Oscillating Knife Cutting Machine Digital Vibrating Blade Fabric Leather Shoe CNC Cutting Machine
Automatic CNC Oscillating Knife Cutting Machine Digital Vibrating Blade Fabric Leather Shoe CNC Cutting Machine
Products Description
cnc leather cutting machine auto car interior leather cutting machine

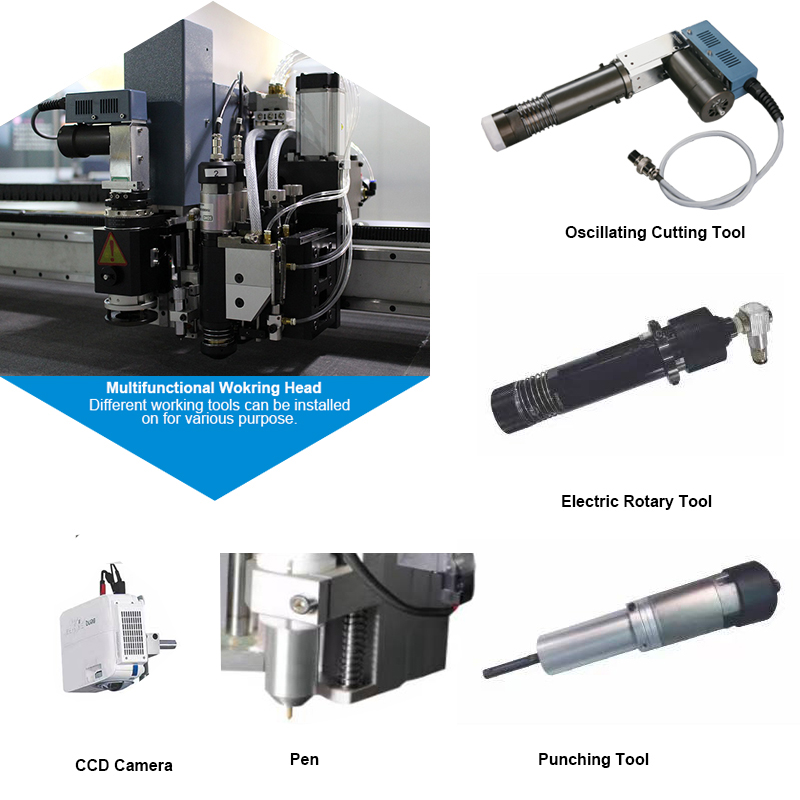

1.Equipped with a variety of cutting tools and pens, which can meet the cutting requirements of all kinds of different materials,and can achieve high-speed, intelligent and precise cutting, punching, drawing and other process requirements, and fully meet the customer's personalized cutting production.

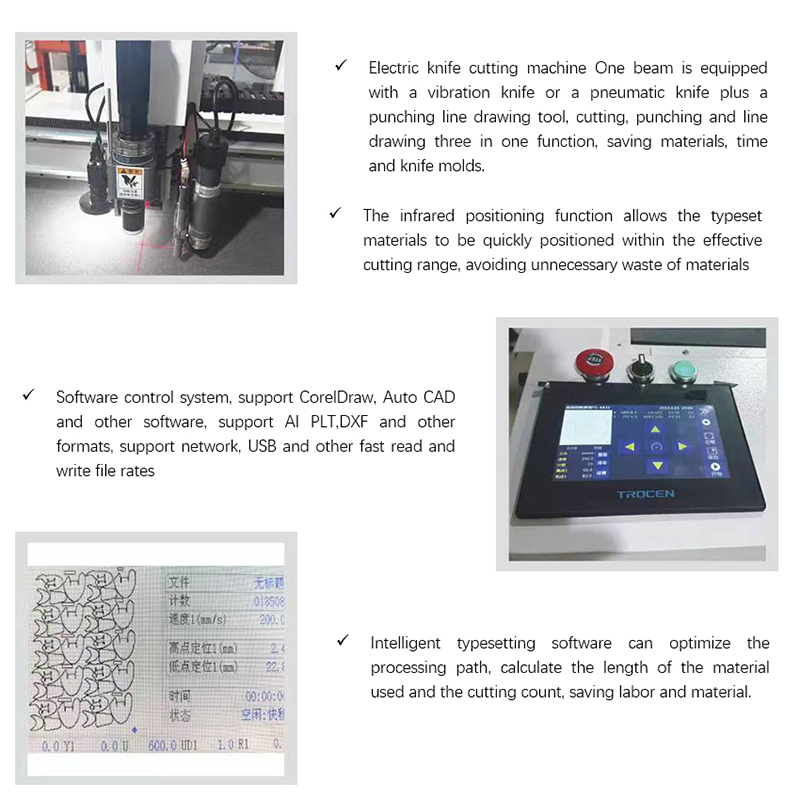

2.Electric knife cutting machine One beam is equipped with a vibration knife or a pneumatic knife plus a punching line drawing tool,cutting, punching and line drawing three in one function, saving materials, time and knife molds.
3.The infrared positioning function allows the typeset materials to be quickly positioned within the effective cutting range,
avoiding unnecessary waste of materials
4.Software control system, support CorelDraw, Auto CAD and other software, support Al PLT, DXF and other formats, support network,USB and other fast read and write file rates
5.Intelligent typesetting software can optimize the processing path, calculate the length of the material used and the cutting count, saving labor and material.
6.Projection function: For leather proofing, replenishment or irregular materials, you need to place a pattern on the material
before cutting. The projector projects the image output by the computer onto the material on the workbench
so that the computer can be used intuitively The operation discharges patterns on the material.
7.Vibrating sharp knife - Driven by a servo motor, the blade vibrates up and down at high frequency to cut materials. It is suitable for cutting medium-density materials. With a wide variety of blades, it can cut the vast majority of flexible materials.
8.Pneumatic sharp knife - Cuts materials through high-speed vibration of air pressure, especially suitable for cutting various hard materials and small multi-layer flexible materials.
*.Brush module - It can draw various process graphics on materials, fully meeting the personalized production needs of customers.
*.Blunt needle - can rush out 4.5/5.0 0.8/1.0/1.5/2.0/2.5/3.0/3.5/4.0 / specifications of the round hole.
Product Paramenters
|
Model |
DF-1510 |
|
Max cutting area |
1480*1000mm |
|
Size |
2000*1300*1760MM |
|
Max speed |
1200mm/s |
|
Accuracy |
±0.1mm |
|
Max cutting thickness |
40mm |
|
motor |
Servo motor |
|
Data format |
DXF HPGL |
|
Interface |
USB or internet Port |
|
Dielectric adsorption |
Vacuum |
|
Overall power |
5kw |
|
Power |
220v/380v 50Hz |
|
Weight |
500kg |
|
Main configuration |
The main configuration includes Japanese Panasonic servo, Schneider electric control, and domestic systems. |
