Footwear Sneaker Shoes Making Upper Vamp Automatic Leather Pneumatic Eyelet Hole Punching Machine
Footwear Sneaker Shoes Making Upper Vamp Automatic Leather Pneumatic Eyelet Hole Punching Machine
Footwear Sneaker Shoes Making Upper Vamp Automatic Leather Pneumatic Eyelet Hole Punching Machine

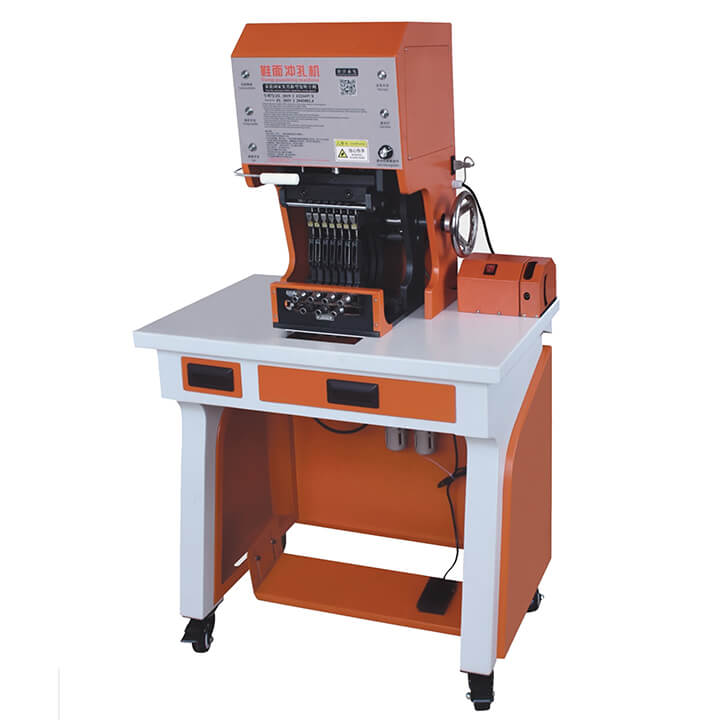

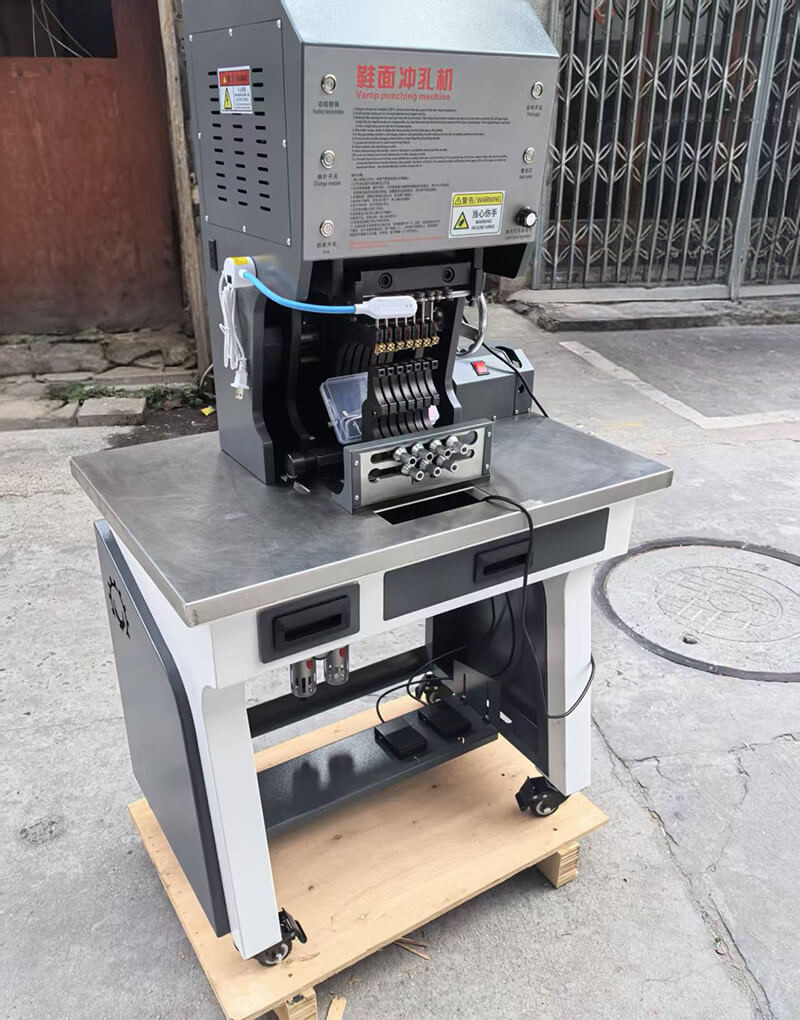

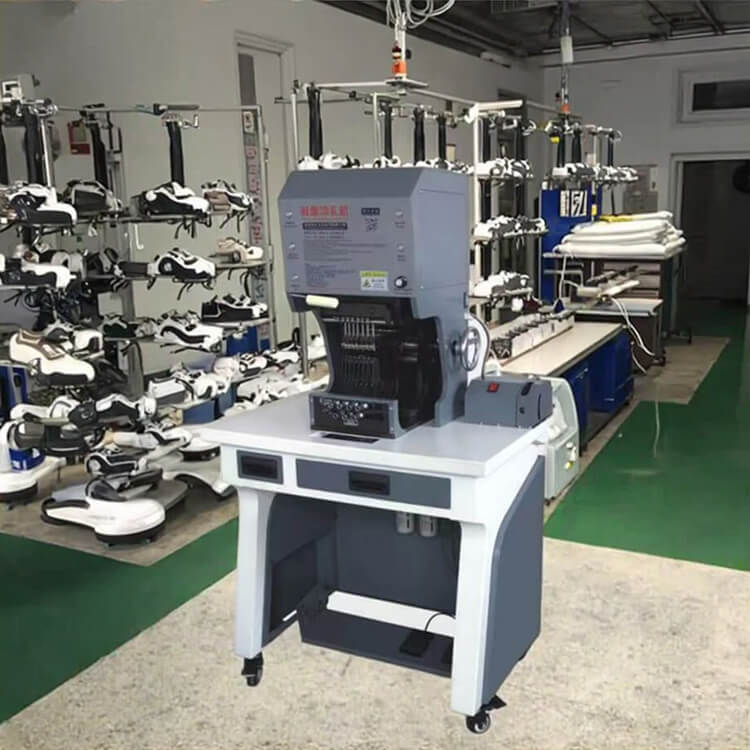

Automatic Leather Eyelet Hole Punching Machine
This machine is widely used in uppers, bags, leather goods, etc., holes and holes in a straight line and not for single-hole,
porous punching in a straight line, seven holes can be punched at a time, curved Equidistant and unequal distances can be adjusted at will, and the reference is adjusted to the point _like infrared reference point. The punching station has a fixed positioning point, the operation is simple and convenient, the maximum punching needle is 5.0, the most Small available 1.5, no need for punching plate, machine with its own grinding machine, punching needle can be used repeatedly. This machine has the advantages of high efficiency and low cost of use.
Product Paramenters
|
Model |
Voltage |
Air pressure |
Pitch |
Dimensions (MM) |
Package Size (MM) |
weight |
|
DF-A7 |
220V |
0.6Mpa |
11.5-28MM |
L730*W470*H1320 |
L840*W580*H1520 |
158KG |
