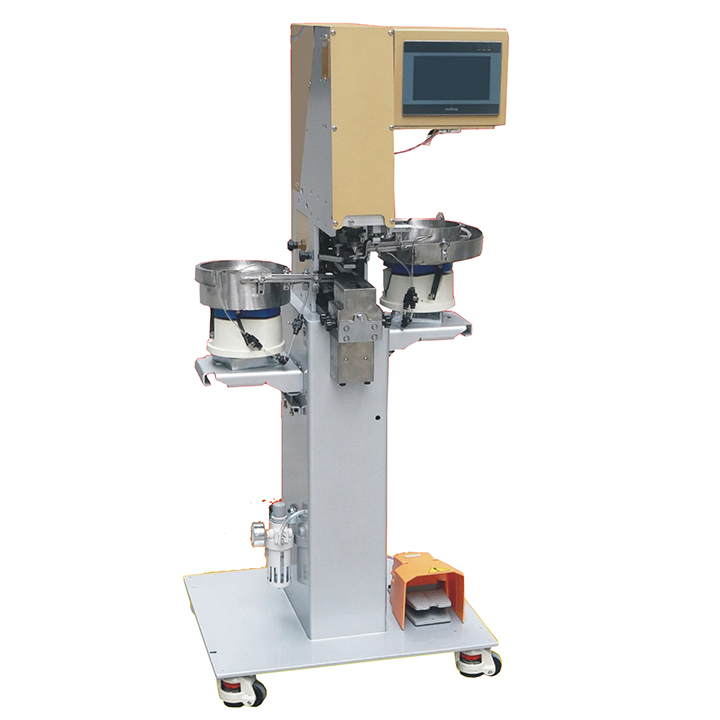

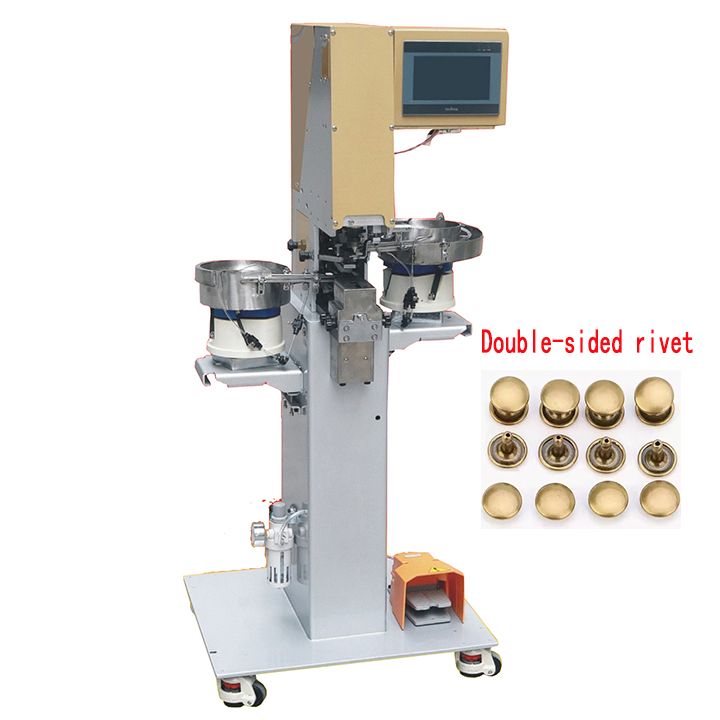

Automatic Skate Brake Shoe Leather Bags Belt Riveting Rivet Machine With Punching Holes
Automatic Skate Brake Shoe Leather Bags Belt Riveting Rivet Machine With Punching Holes
automatic skate brake shoe leather bags belt riveting machine With punching holes
Use: This machine is applicable to clothing, footwear, headwear, handbags, bags, and other products for the riveting operations of decorative buttons. Characters: 1.This machine adopts a touch screen control system to adjust parameters, featuring simple and convenient operation. 2.This machine features single-hole punching, single button riveting, and automatic punching and button riveting functions, offering a wider range of applications. 3.Both upper and lower buttons adopt automatic feeding via vibrating plates, featuring adjustable speed and ensuring more stable material delivery. 4.This machine features a combination of motor and pneumatic configurations, ensuring more stable performance. 5.This machine features an automatic counting function. 6.This machine is applicable to the riveting of 5#-10# various metal buttons.
Product Paramenters
|
Model |
Voltage |
Power |
Air pressure |
SPEED OF RIVETING |
size |
N.W/G.W |
|
DF-198-8B |
220V/50-60Hz |
0.4KW |
0.6Mpa |
80-100pcs/min |
700*630*1560mm |
138kg/150kg |
