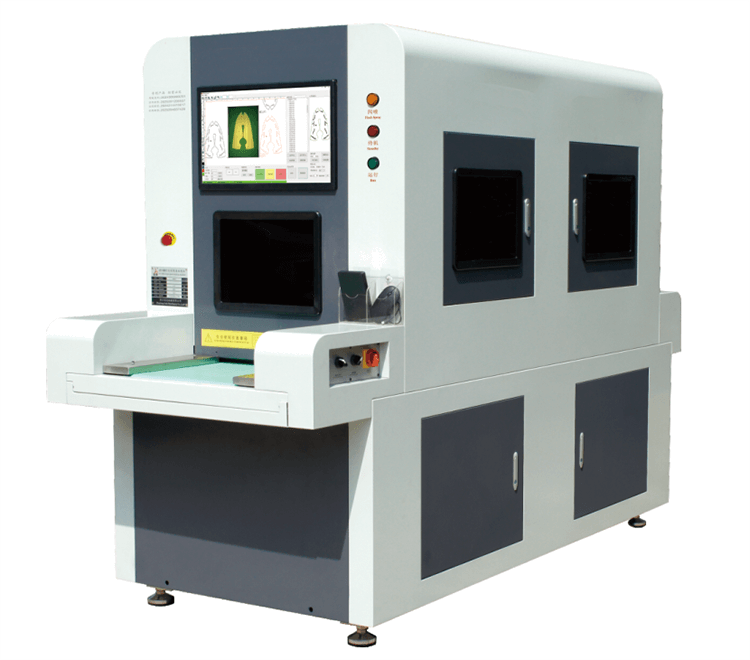

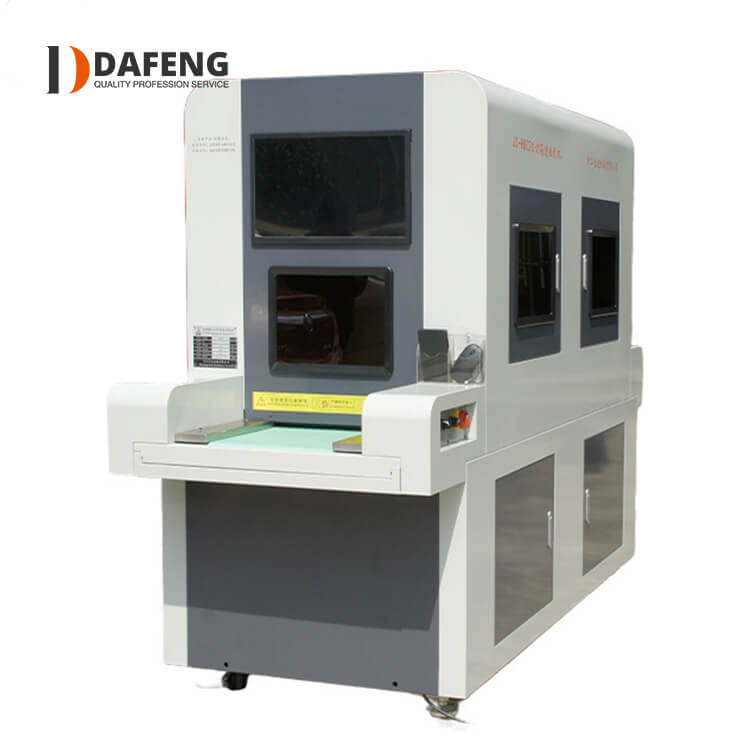

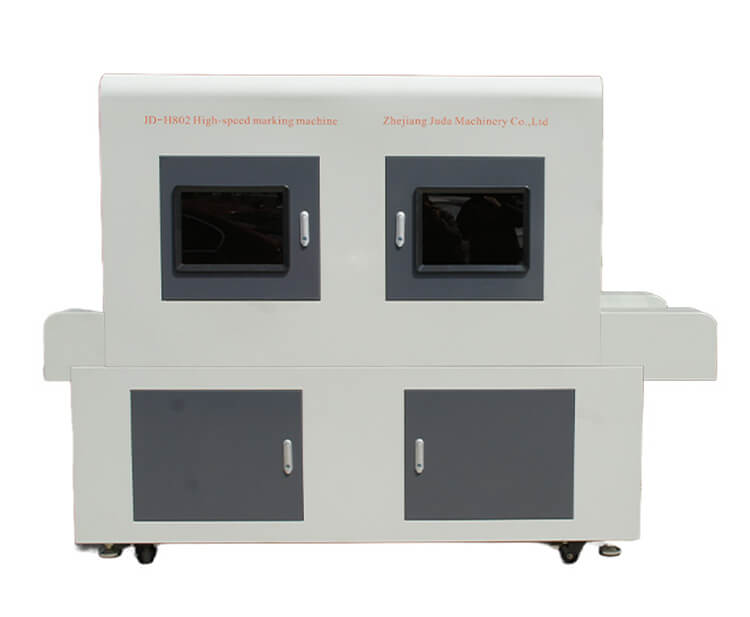

Shoe Upper Drawing High Speed Full Automatic Intelligent Line Marking Machine Shoe Material Shoe Upper Visual Marking Machine
Automatic Marking Line Machine for Shoe Vamp Shoe Upper Marking Line Shoe Making Machine
一：Place materials
Instant marking upon placement, Seamless workflow No downtime waiting: conveyor belt operates continuously, breaking through production bottlenecks
二：image capture area
Advanced technology, Precision safeguarding High-speed industrial cameras enable dynamic imaging and recognition, achieving enhanced precision in narrow-area capture.
三：Screen display
Intelligent software Line patterns support DXF file import; new designs can be rapidly loaded in 5 minutes, with 10-second quick mold changeover.
四：Marking area
Ink cartridge + Ink tank 16 ink cartridge slots spanning the conveyor belt area enable synchronized printing, eliminating the risk of XY-axis deviation.
五：Output finished products
Finished product discharge High-speed line marking Line marking speed increased by 3 times.
USE：
This machine is used for automatic printing and precise sewing marking lines on leather, synthetic leather,or fabric uppers. By importing templates instead of traditional manual drawing lines, we ensure precise alignment of the seam process and improve product consistency.
CHARACTERS：
. Vision Positioning System: Equipped with high-speed industrial cameras and utilizing dynamic vision algorithms it achieves high-precision and efficient performance.
. Mechanical Structure Optimization: Featuring a narrow-width conveyor belt design, the footprint is reduced by 60% compared to traditional equipment. The material feeding process is seamless without waiting, and the drawing efficiency is increased by three times
, Intelligent inkjet System: 16 ink cartridges are arranged in a horizontal array, equipped with an ink cartridge maintenance system to extend the service life of the cartridges. Intelligent Control System: 24-inch industrial display screen, PLC central control system, graphical operation interface in both Chinese and English, with self-diagnostic fault prompts.
|
Model |
Voltage |
Work pressure |
Working speed |
Power |
Weight |
Size |
|
DF-H802 |
220V/50Hz |
0.4Mpa |
30M/MIN |
1.1KW |
520KG |
2700*985*1780mm |
