Automotive Interior CNC Automatic Leather Punching and Perforating Programming Machine for Fabric Car Seat Cover
Automotive Interior CNC Automatic Leather Punching and Perforating Programming Machine for Fabric Car Seat Cover

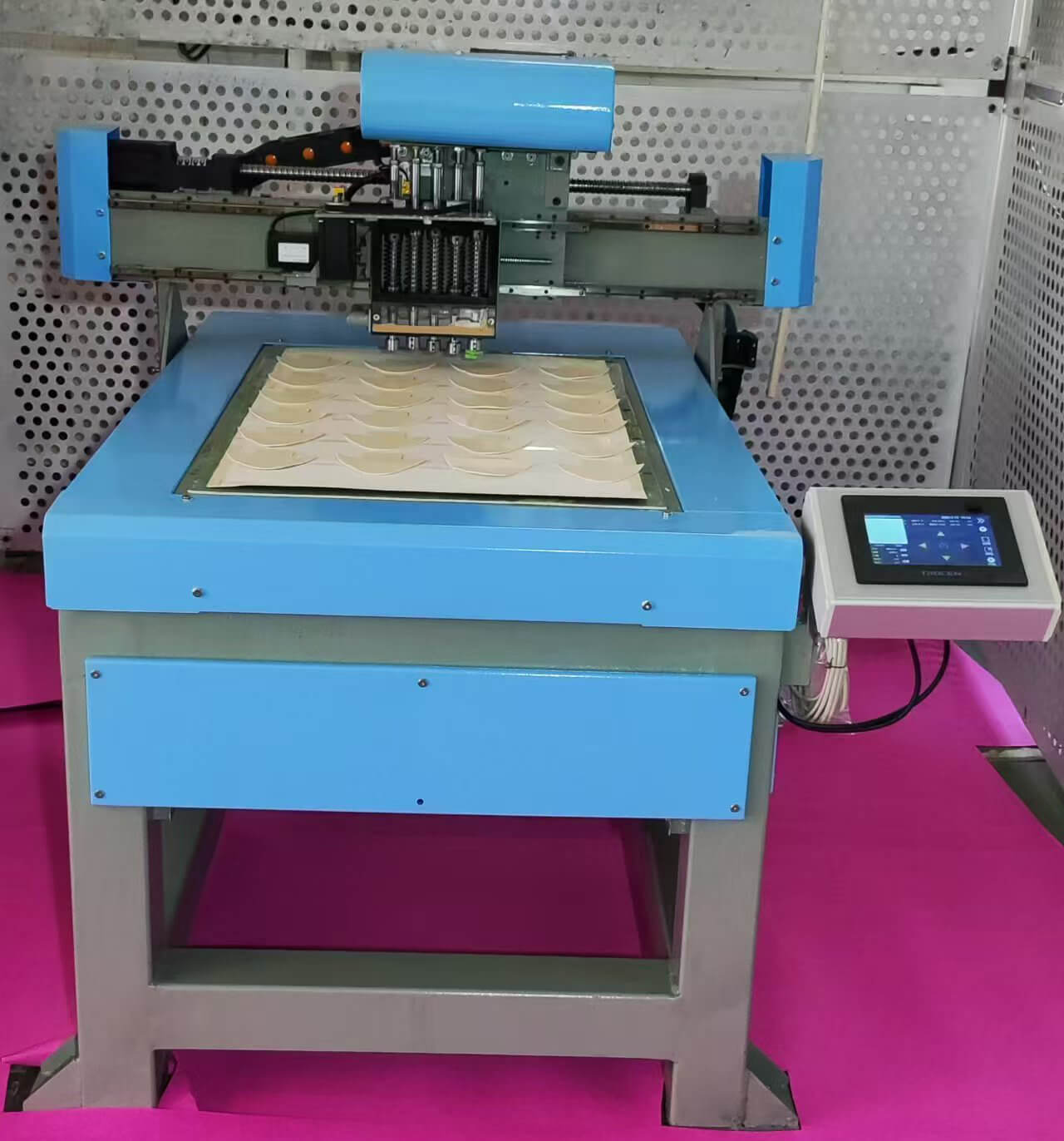

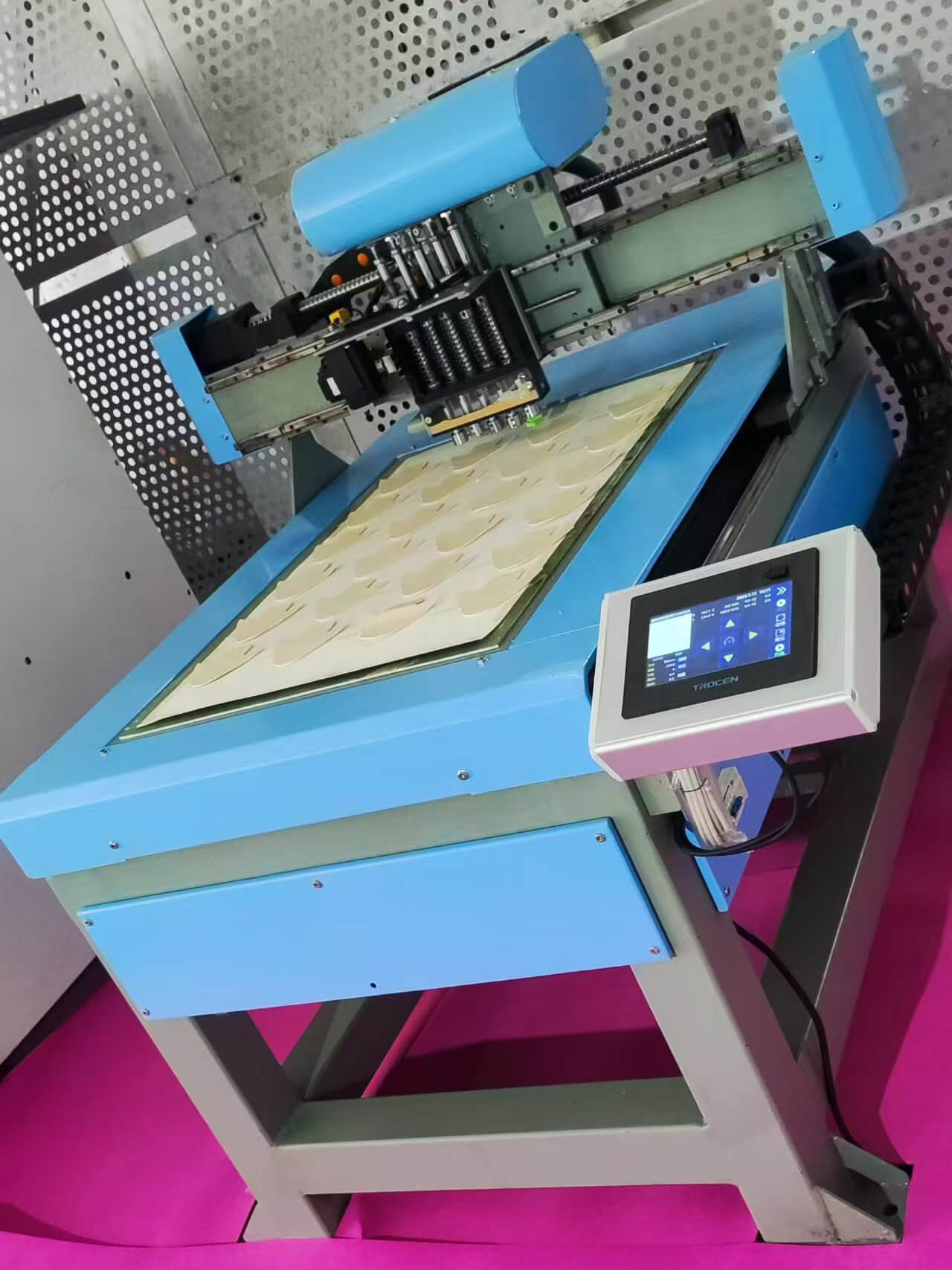

Automotive Interior CNC Leather Punching and Perforating Programming Machine for Fabric Car Seat Cover
It is economical, light and compact machine for repacking market.
It is suitable for repacking workshops, sample room of car seat factories and
dedicated punching workshops.
Machine Features
Small machine size
Big working area of 1000x1200mm in maximum
1000~1800 holes/min, high productivity
Design by CAD/CorelDraw, no need of mold
Leather vacuuming fixing system (optional device)
coo drawing of popular perforation patterns are in the machine

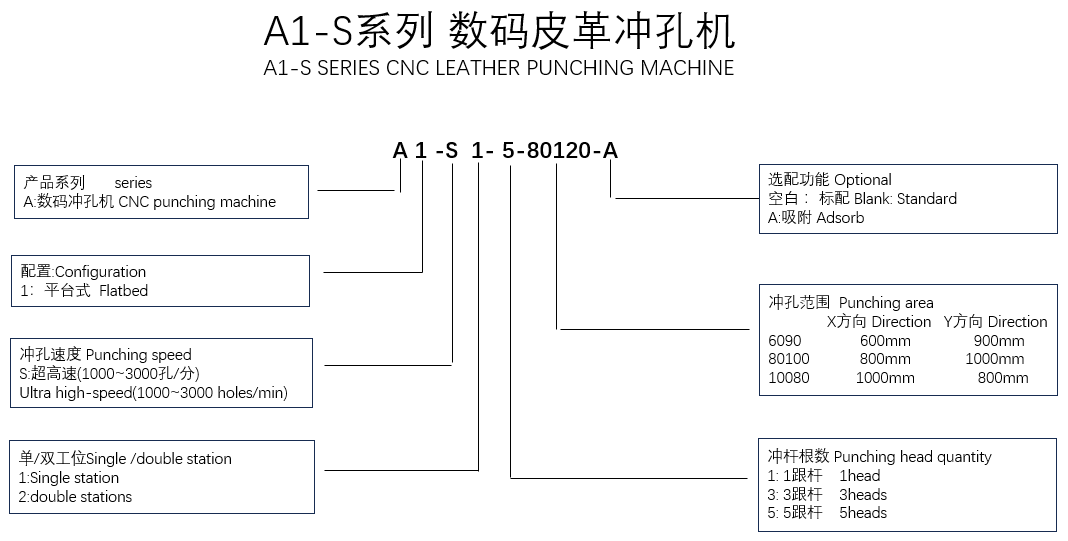

Product Paramenters
|
Model |
A1-S1-3-6090 |
A1-S1-5-80100 |
A1-S1-5-10080 |
|
Model Specification |
1 station3heads High speed |
1 station5heads High speed |
1 station5heads High speed |
|
Punching area |
600×900mm |
800×1000mm |
1000×800mm |
|
Hole size |
0.6-13MM |
0.6-13MM |
0.6-13MM |
|
Punching Speed(Holes/min) |
1000 |
1000 |
1000 |
|
Punching head quantity |
3 |
5 |
5 |
|
Rotation Punching head quantity |
1 |
2 |
2 |
|
Power |
220/1.2KW |
220/1.2KW |
220/1.2KW |
|
N.W |
400KG |
600KG |
600KG |
|
Machine size |
1640*1260*1380mm |
1770*1620*1380mm |
1620*1770*1380mm |
