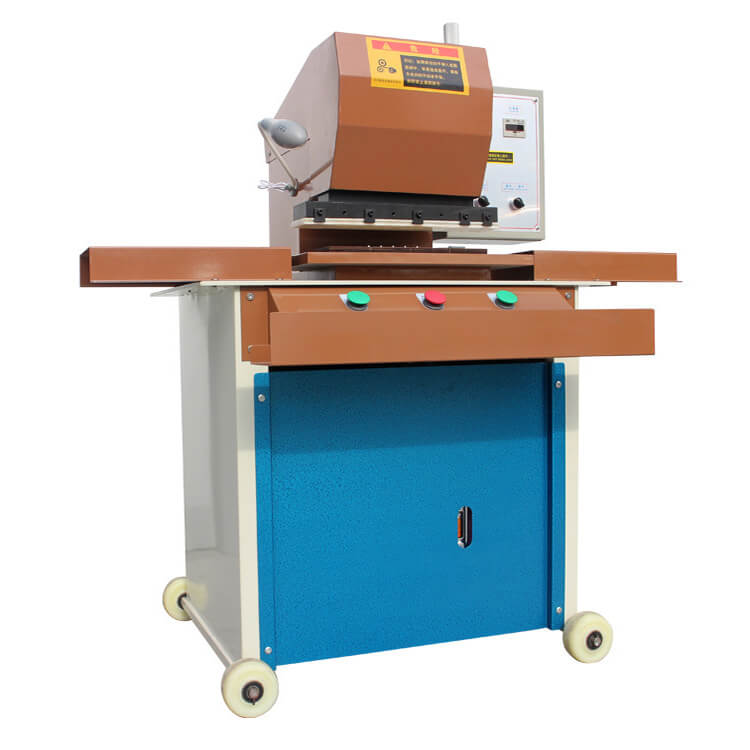

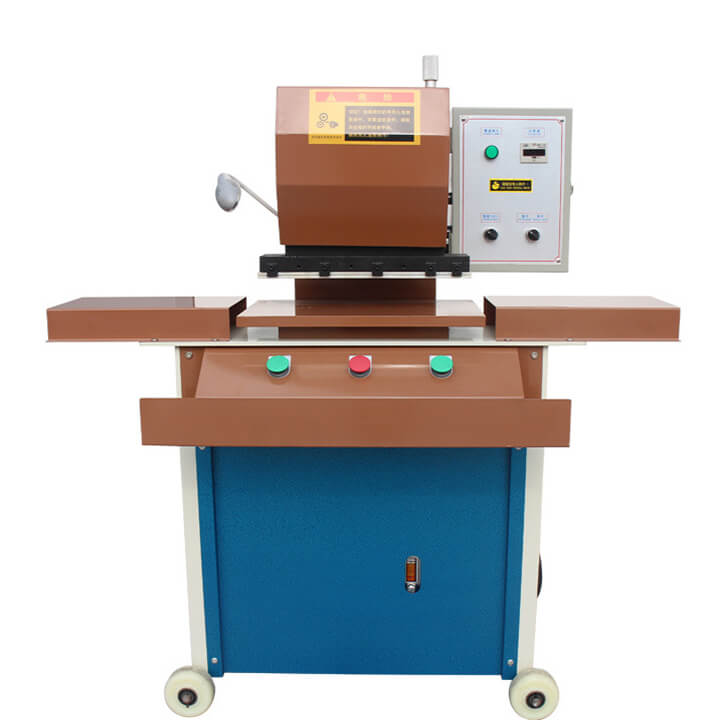

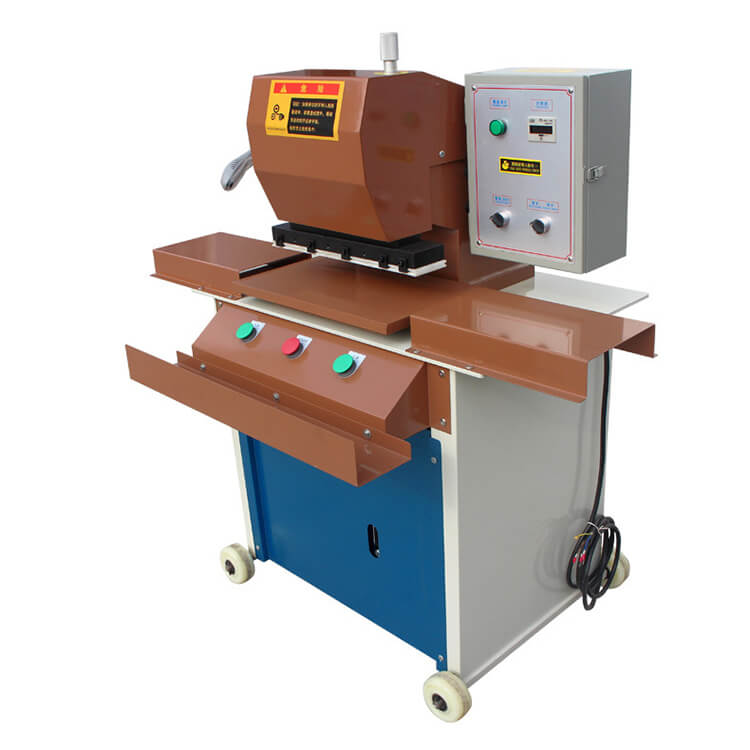

Leather Belt Making Machine High-speed Hydraulic Press Leather Belt Holes Punching Machine
Leather Belt Making Machine High-speed Hydraulic Press Leather Belt Holes Punching Machine
High-speed Hydraulic Press Leather Belt Holes Punching Machine Leather Belt Making Machine
Application: Primarily used in belt factories for rounding ends and punching holes, and in handbag factories for simultaneously rounding shoulder strap ends and punching holes
Main Features:

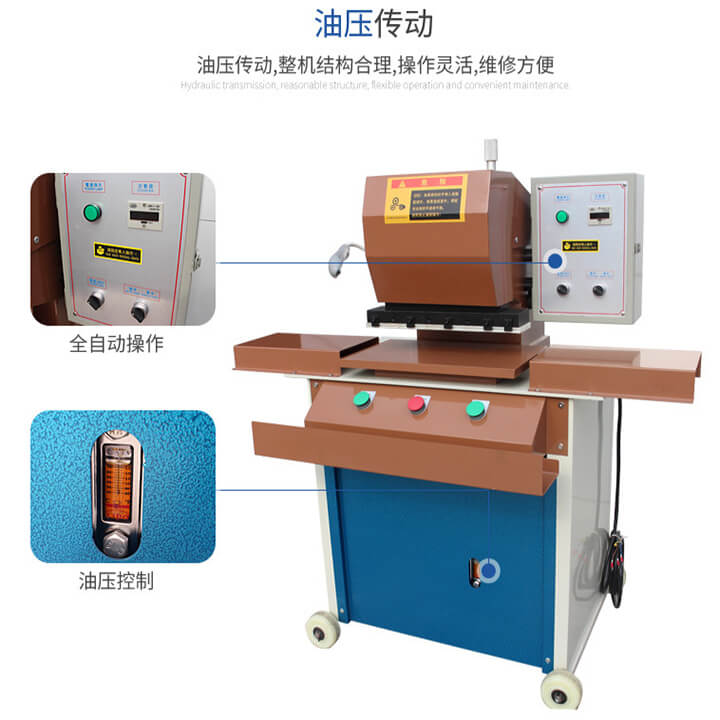

1. The hydraulic pressure control of the machine can adjust the cutting head end, tail end and length of male and female belt, and the tail hole can be completed at one time.
2. The distance between holes or ends can be adjusted according to the need.It has safety device, easy operation and can improve quality and yield.
3. High precision, good stability, economy, durability and safety.
Product Paramenters
|
Model |
voltage |
power |
Working width |
pressure |
N.W |
size |
|
DF-650 |
380V/50Hz |
1.5kw |
80mm |
3Tons |
150KG |

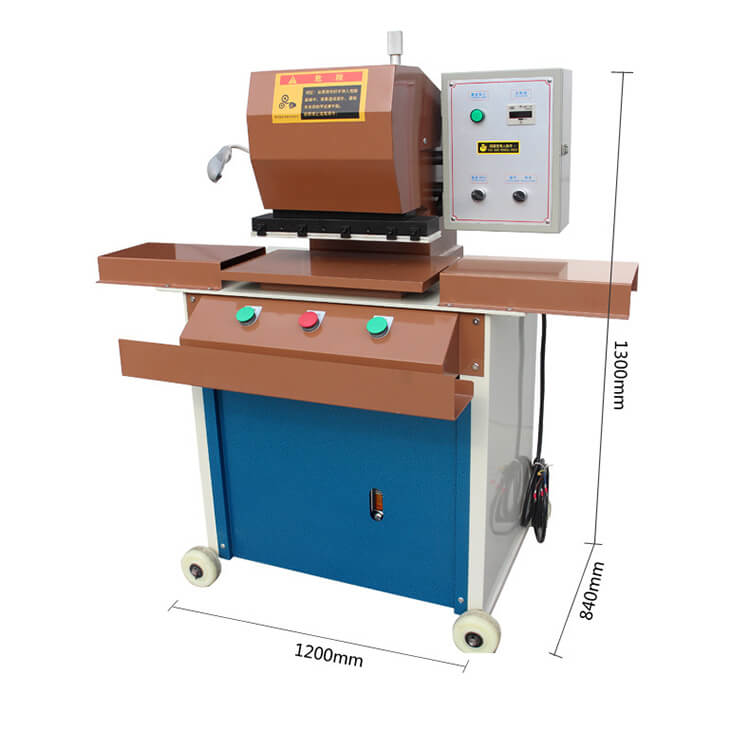

1200*840*1650MM |
