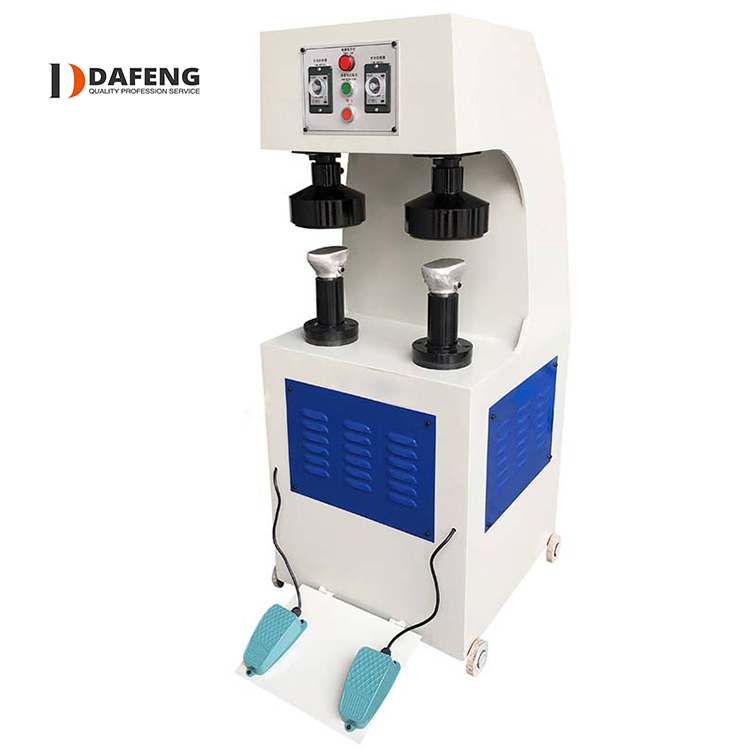

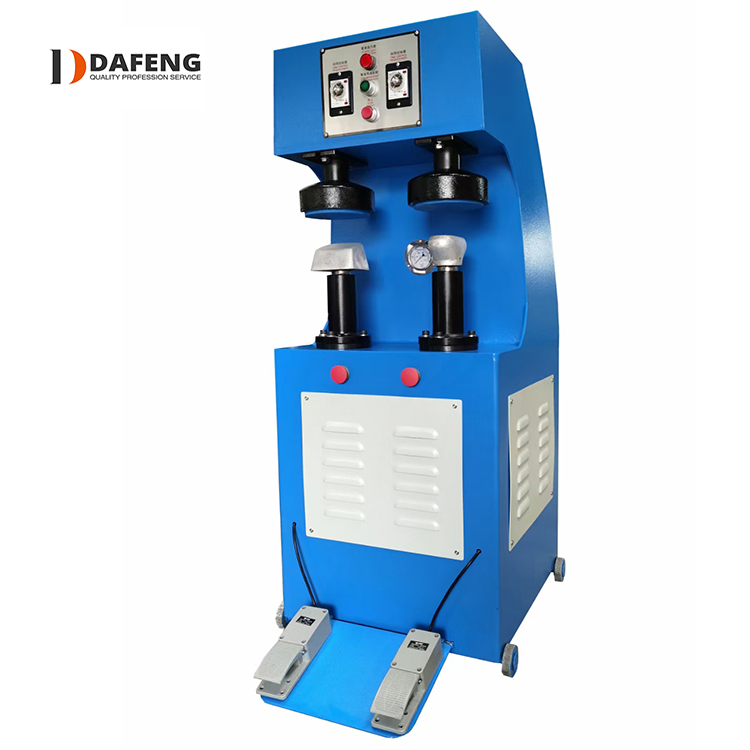

Shoe Making Machine Automatic Hydraulic Shoe Sole Press Attaching Hammering Machine for Sole Bonding Factory
Shoe Making Machine Automatic Hydraulic Shoe Sole Press Attaching Hammering Machine for Sole Bonding Factory
Shoe Making Machine Automatic Hydraulic Shoe Sole Press Attaching Hammering Machine for Sole Bonding Factory
It adopts closed oil pressure system to improve the round-trip speed and high efficiency.
1. The machine is suitable for toe cap, heel seat and edge hammering after sole & relative spare part or components attaching together at stock fitting section.
2.The hammering speed is fast and the pressure is large, which can greatly increase the bonding effect between outsole and its components or spare parts of outsole.
3. Pressure is adjustable to meet up with different requirements.
4. Adopt closed cycle hydraulic control system to improve hammering speed & machine efficiency.
5. Double head and double cylinder, high efficiency, low noise, smooth operation
Shoe Making Machine Automatic Hydraulic Shoe Sole Press Attaching Hammering Machine for Sole Bonding Factory
|
Model No. |
DF-815S |
DF-815D |
|
Working voltage |
380V/50HZ |
380V/50HZ |
|
Power |
1.5KW |
1.50kw |
|
Capacity |
1500pairs/8hours |
3000pairs/8hours |
|
N.W.: |
180kgs |
260kgs |
|
Dimensions |
580*630*1400mm |
860*630*1400mm |
