Computerized Leather Sponge Sewing and Automatic Punching Perforation Combine Machine for Car Seat Cushion Sofa Pillow

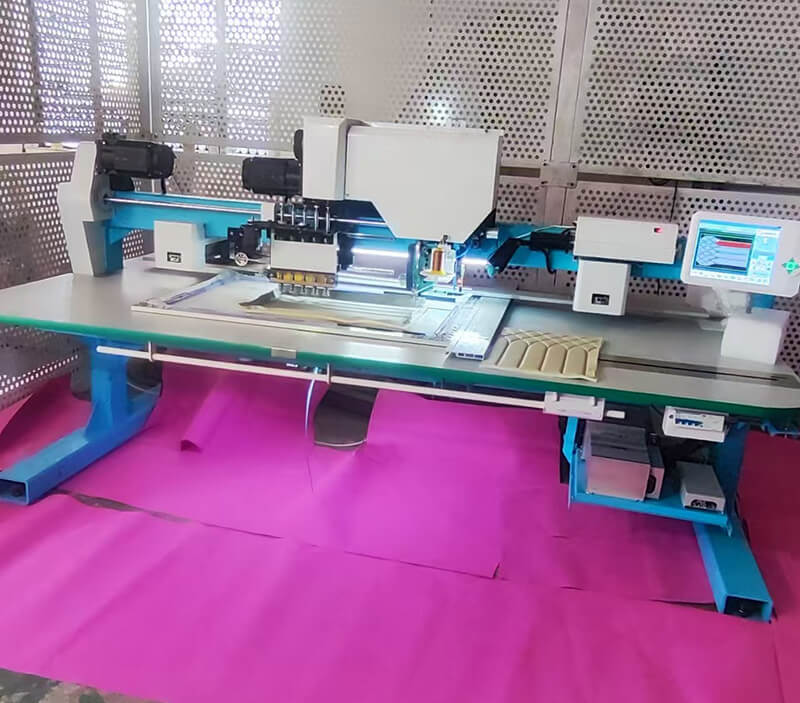

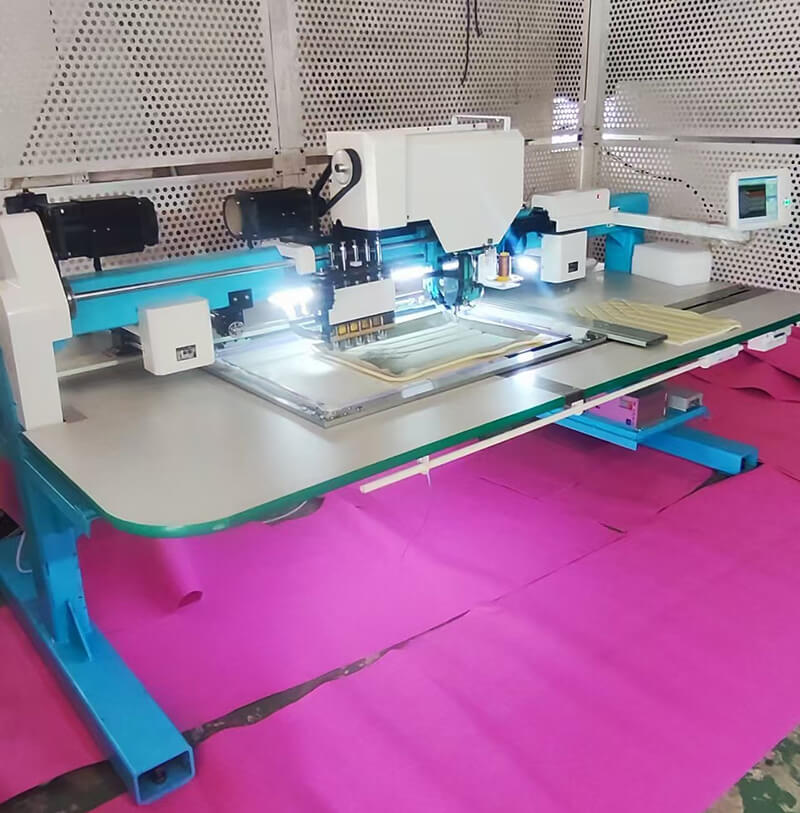

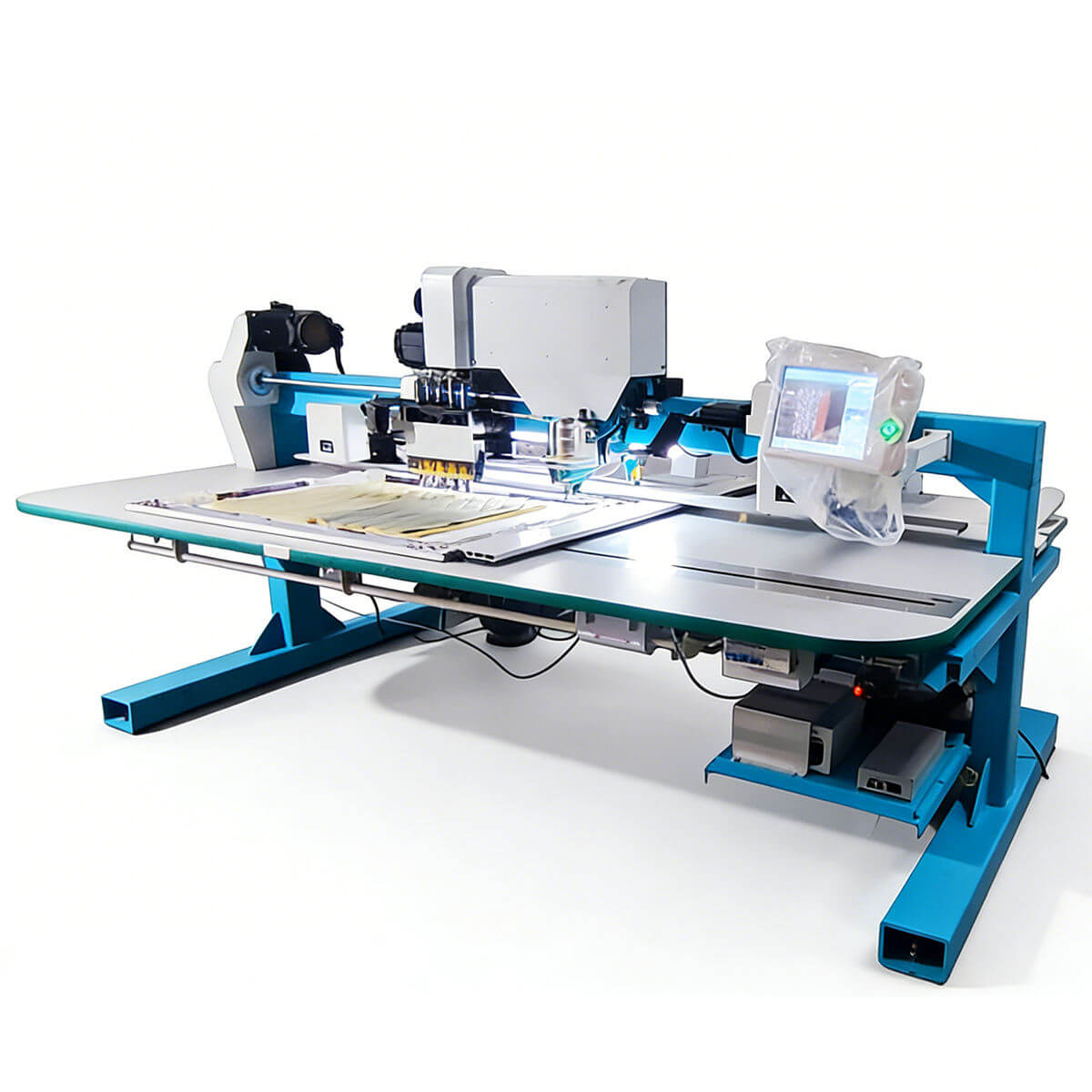

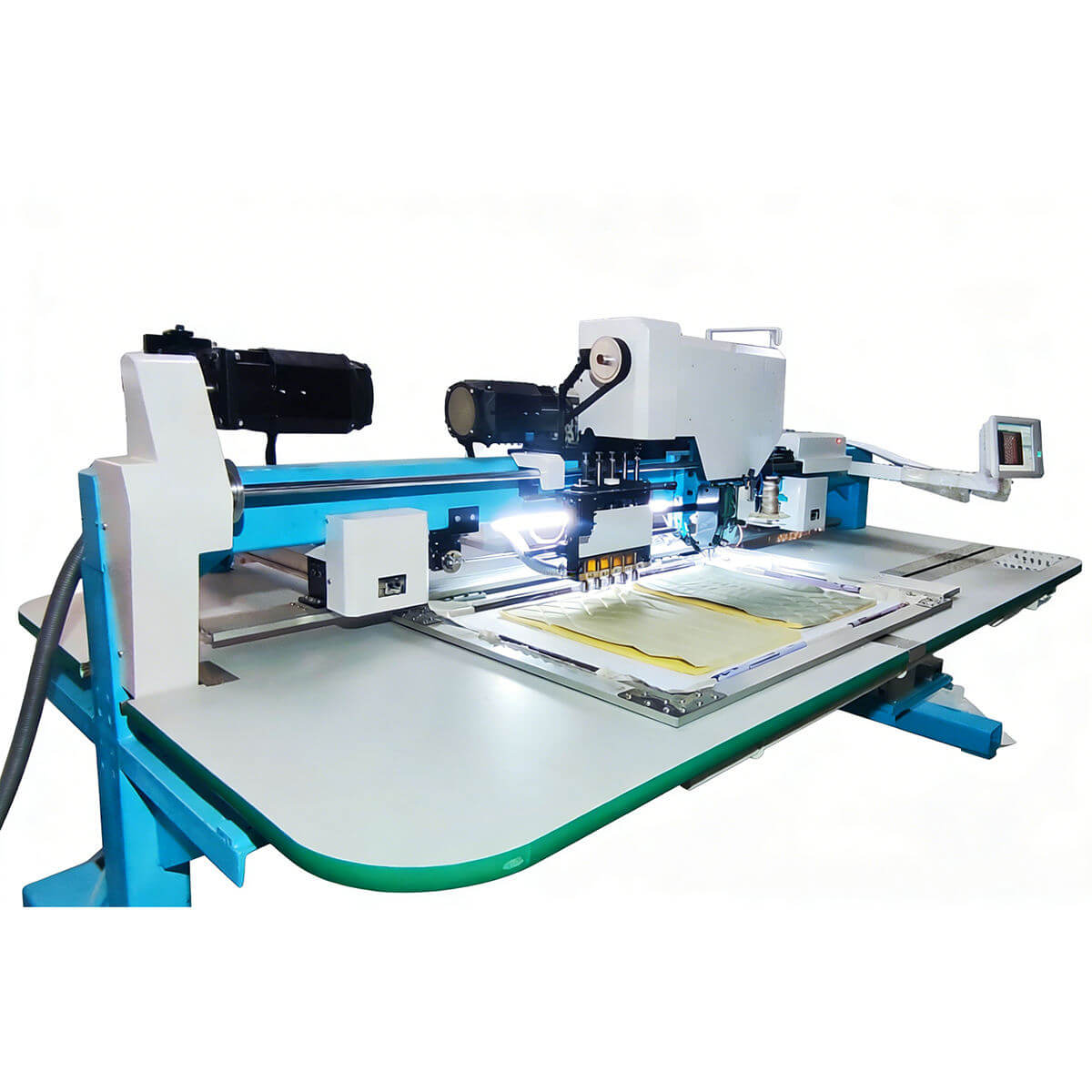

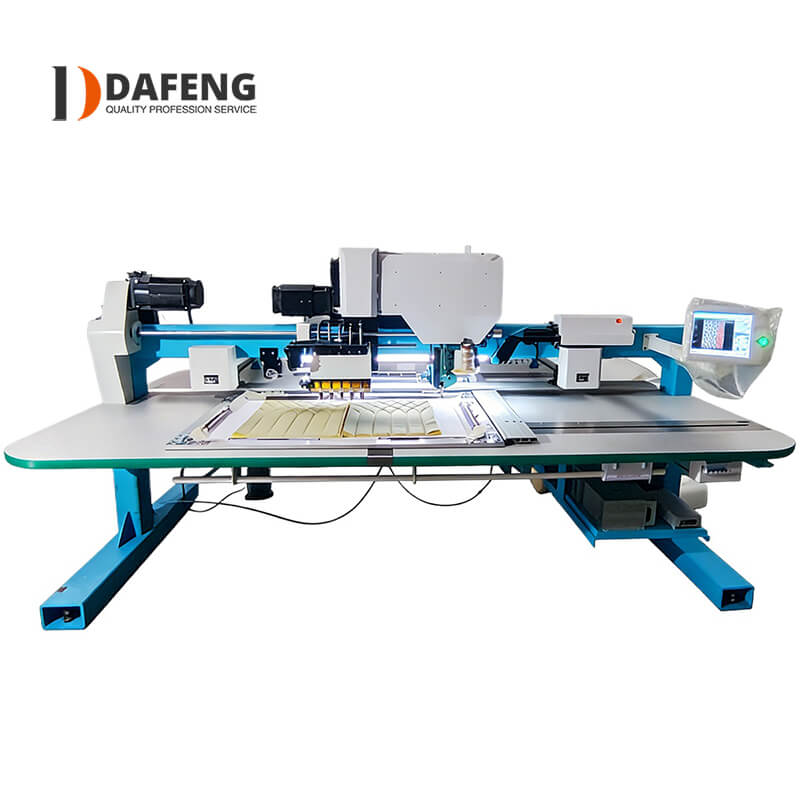

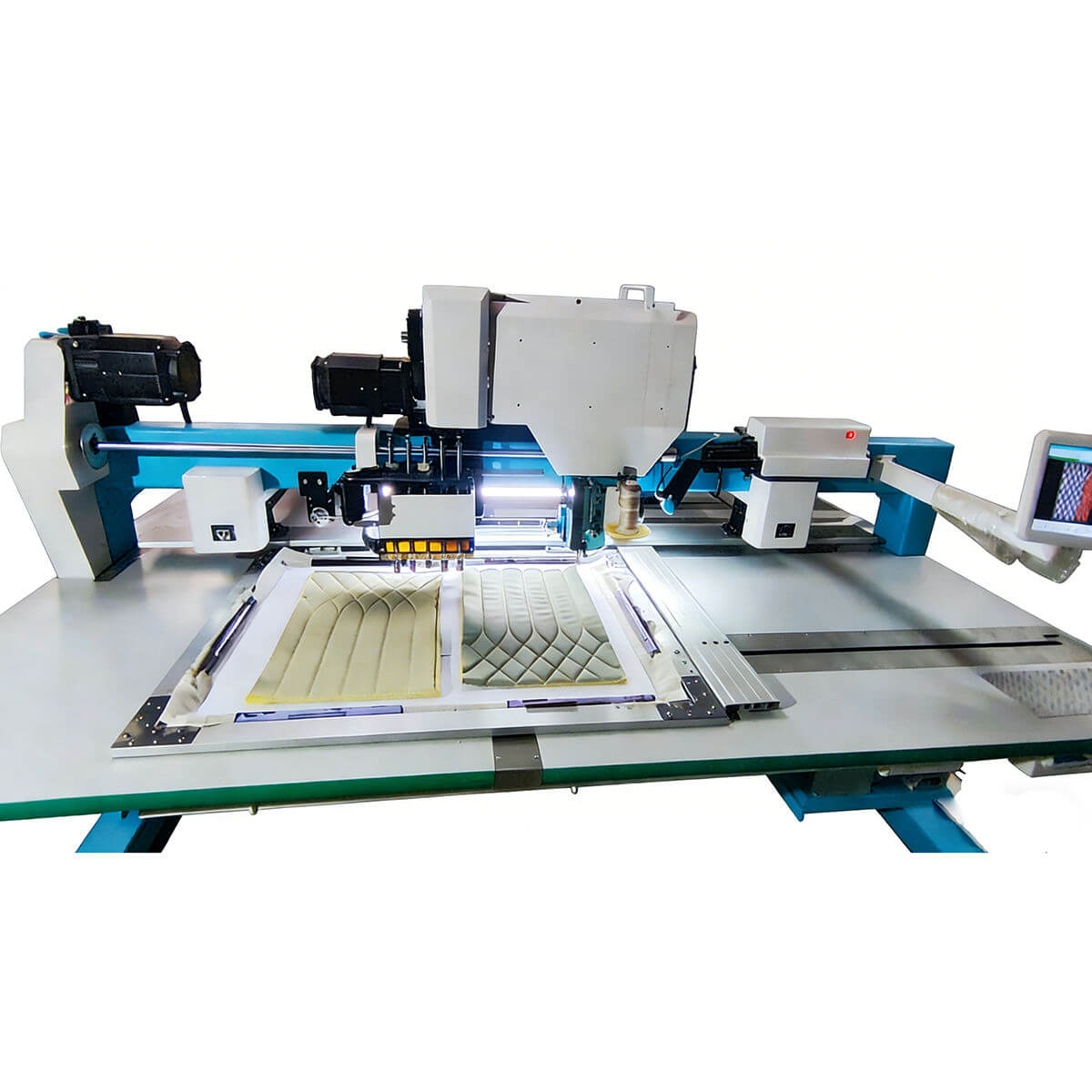

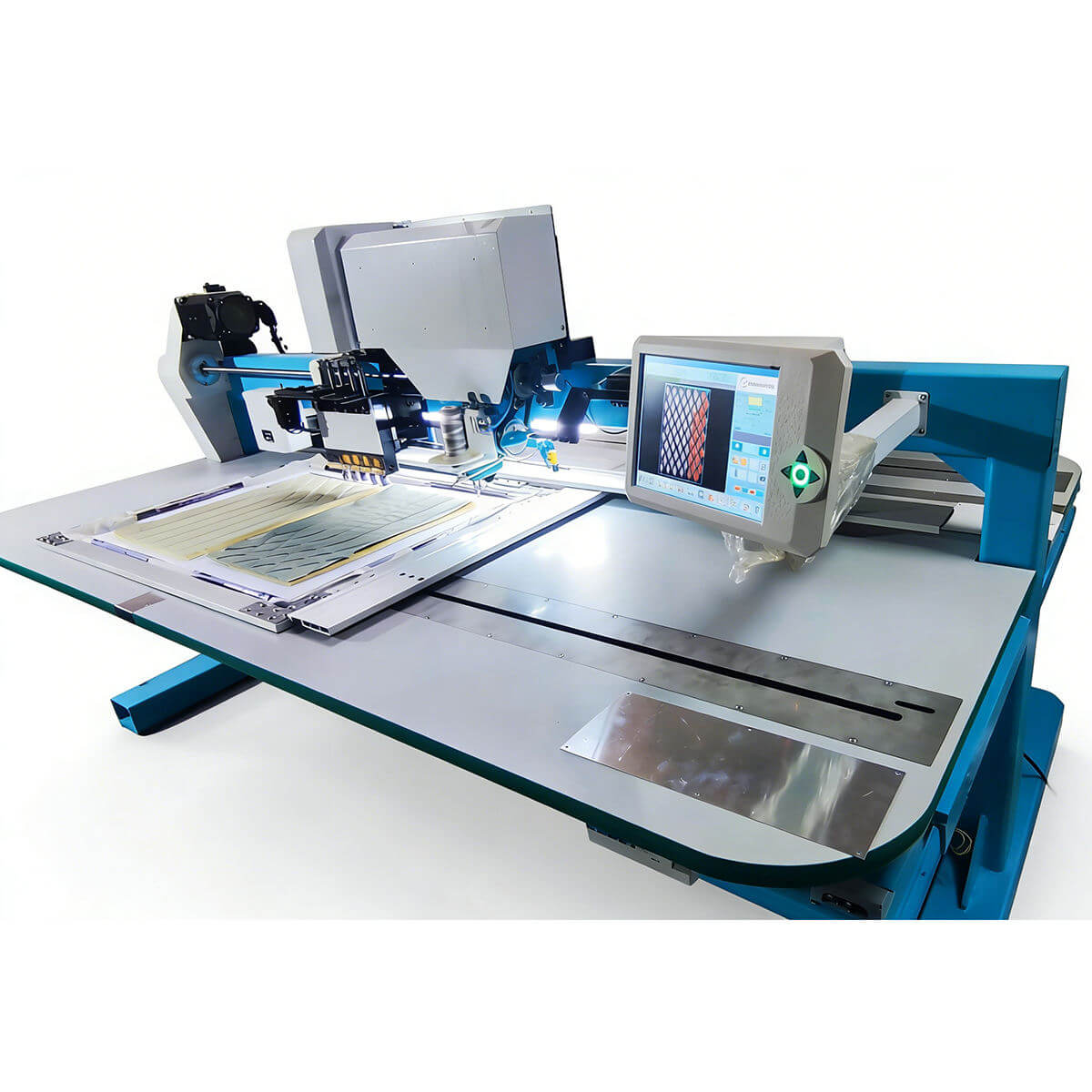

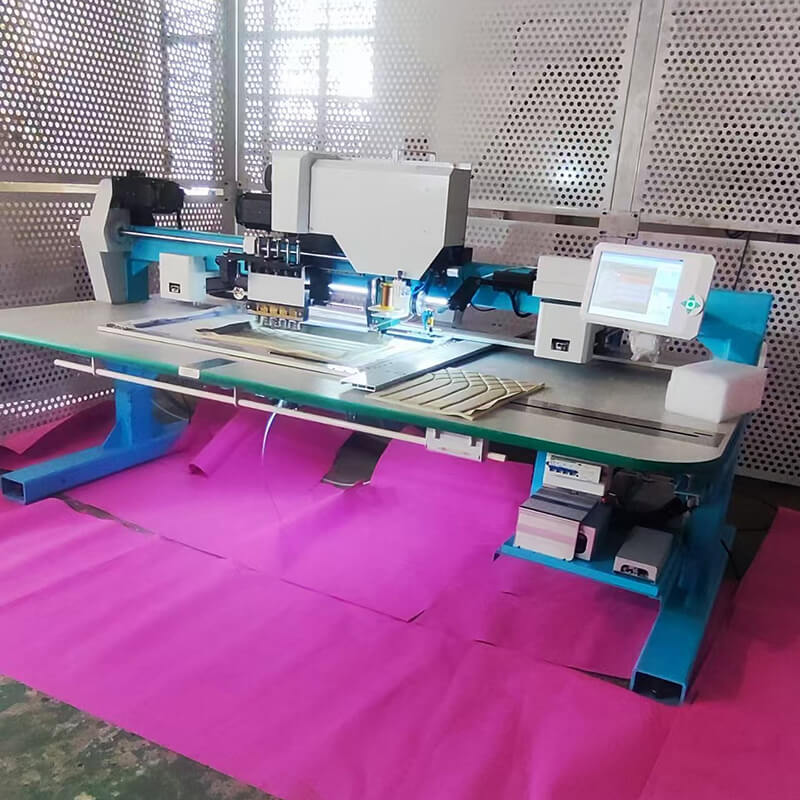

Automatic Leather Sponge Sewing and Perforation Combine Machine for Car Seat Cushion Sofa Pillow
Download product catalogue
Automatic Leather Sponge Sewing and Perforation Combine Machine for Car Seat Cushion Sofa Pillow
Introduction to the New Punching and Sewing Integrated Machine:
1. Each punching head features 5 punching blades, capable of punching holes ranging from 0.8 to 3 millimeters in diameter. It can punch materials up to 8 millimeters thick.
2. The heavy-duty sewing head can handle thick threads, with a working range of 600*900 millimeters (customizable).
Features of the Punching and Embroidery Integrated Machine:
1. Integrated Functionality:
Combines punching and sewing into one machine, enabling both processes on a single unit. This reduces process changeovers and boosts production efficiency.
2. Versatile Techniques:
Achieves intricate perforated patterns and hole effects combined with embroidered designs. This creates richer textures and unique visual effects on soft materials like leather.
3. High Automation:
Typically equipped with advanced control systems and computerized layout, enabling precise control over punching positions, sizes, and embroidery stitches/patterns, reducing manual operation complexity.
4. Wide Applicability:
Suitable for various fabrics including leather garments, home textiles, and more, meeting diverse product processing needs.
5. Enhanced Production Efficiency:
Eliminates material transfer between different machines, shortens production cycles, and is ideal for batch production.
Automatic Leather Sponge Sewing and Perforation Combine Machine for Car Seat Cushion Sofa Pillow
|
型号 |
Model |
A1SF-9060 （2对头，一个缝纫头+一组冲刀头(5冲刀一组） |
A1SF-9060 (2 sewing heads, one sewing head + one set of punching heads (5 punching heads per set)) |
|
工作面积 |
Working area |
600*900毫米，可以定做其他的工作面积 |
600 x 900 mm, custom work areas available |
|
工作速度 |
Work speed |
单针缝纫最高1200针/分钟，冲孔最高速度1200孔/分钟 |
Single-needle sewing: up to 1200 stitches per minute Punching: up to 1200 holes per minute |
|
功率 |
power |
3000W |
3000W |
|
电压 |
voltage |
380V/220V |
380V/220V |
|
毛重 |
G.W |
750KG |
750KG |
|
尺寸 |
size |
长2.8米 宽1.8米 高1.4米 |
L2800*W1800*H1400MM |
|
皮革厚度 |
Thickness |
0.1--8毫米 |
0.1-8MM |
|
文件格式 |
File Format |
DST |
DST |
|
机器特征 |
Machine Features |
自动剪线，自动换刀 |
Automatic thread trimming, automatic tool change |
|
功能 |
Function |
平面缝制和打孔 |
Flat sewing and punching |
|
锁定装置 |
Locking device |
气动锁头 |
Pneumatic Lock Head |
|
冲孔直径 |
Punching diameter |
0.8 1.0 1.2 1.5 1.8 2.0 2.5 （其他花型定制） |
0.8 1.0 1.2 1.5 1.8 2.0 2.5 (Other Floral Patterns Customization) |
|
X Y电机 |
X Y Motor |
伺服电机 |
Servo motor |
