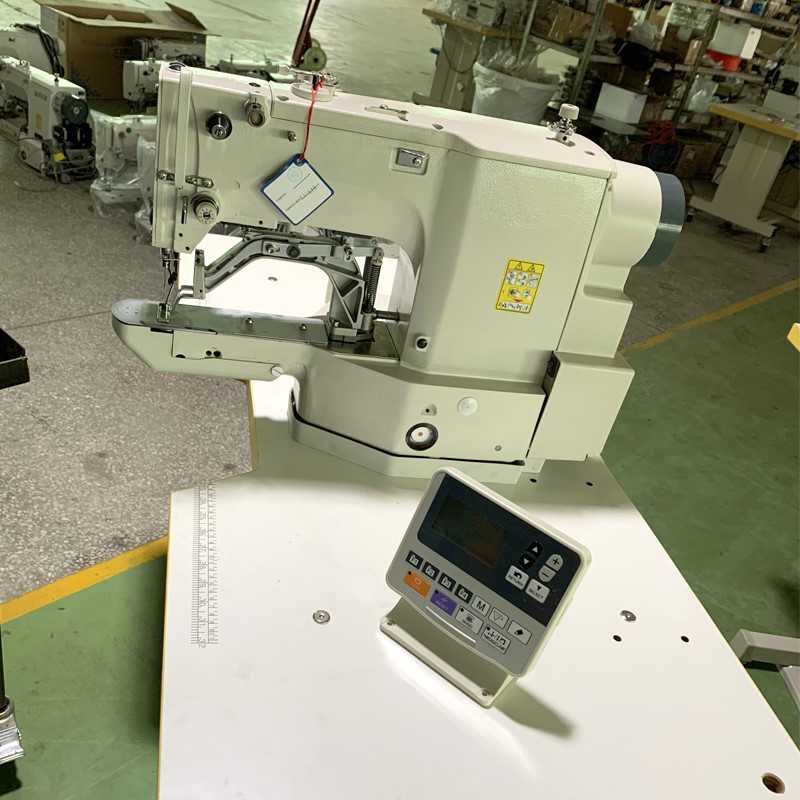

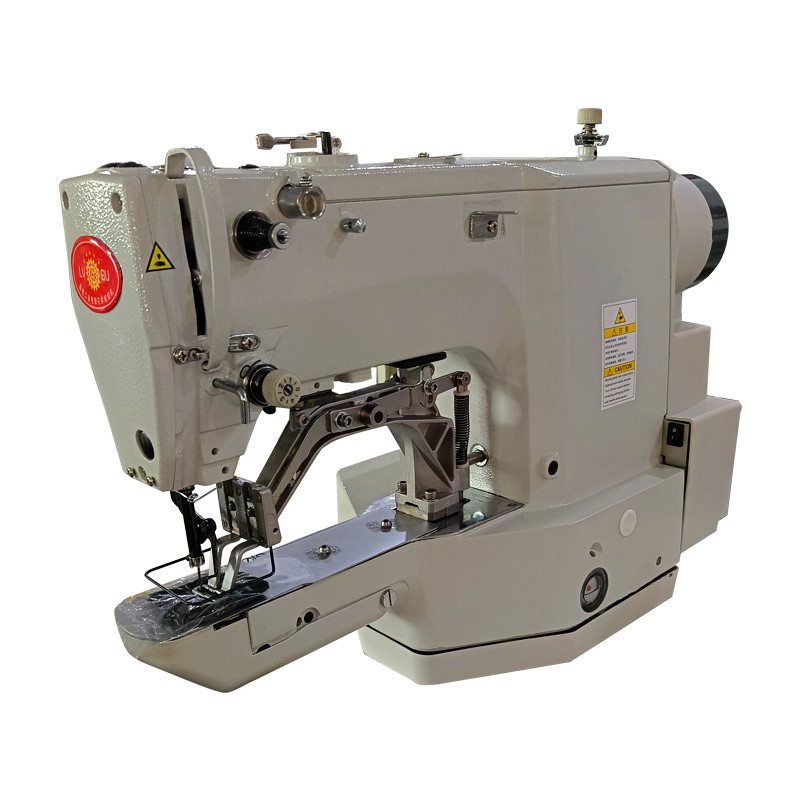

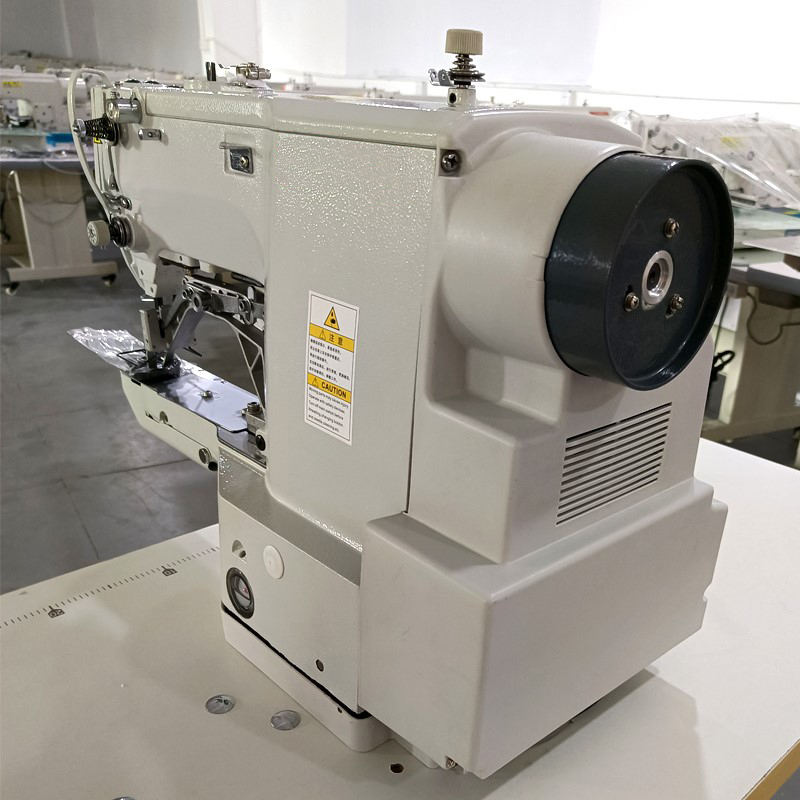

Leather Sewing Equipment 430D Direct Drive Lockstitch Electronic bar Tacking Machine Industrial Sewing Machine
Leather Sewing Equipment 430D Direct Drive Lockstitch Electronic bar Tacking Machine Industrial Sewing Machine
Product performance description:
1.Overwhelmingly superior productivity with the world's fastest cycle time.
2.High quality sewing faithfully following the sewing data.
3.Realization of wide ranging sewing capabilities and low tension sewing.
4.Follow-up processing unnecessary after thread trimming.
5.Prevents thread cast-off, bird’s nests, and stains on the thread at the beginning of the sewing operation.
6.Clean sewing, powerful needle penetration force, adoption of compact flash cards.
7.Low noise and low vibration, because of its low power consumption, it is economical. 8.Sewing area 40*30mm

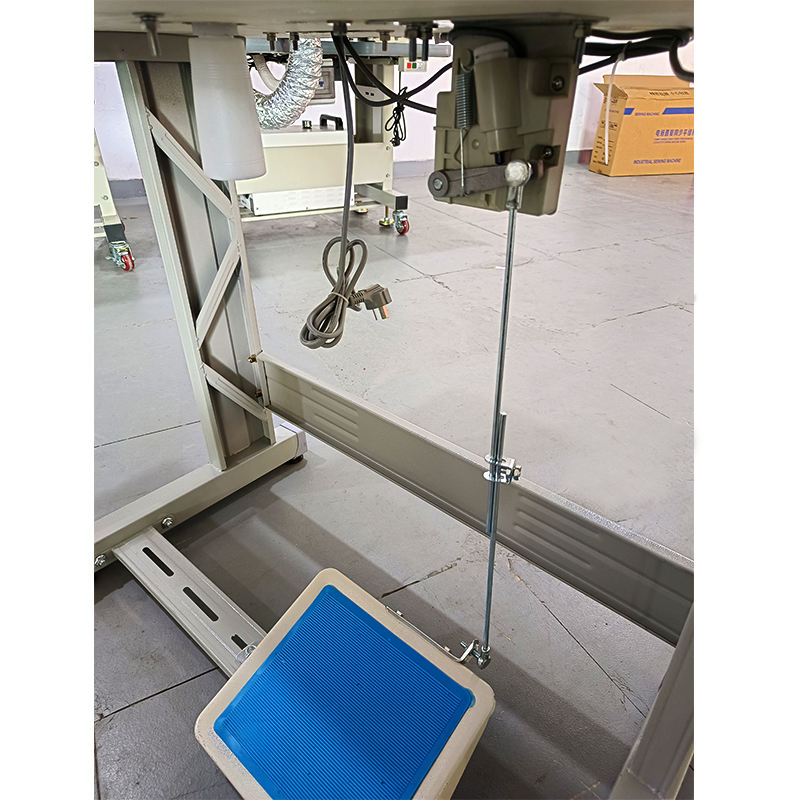

Foot control switch, gently step on automatic sewing

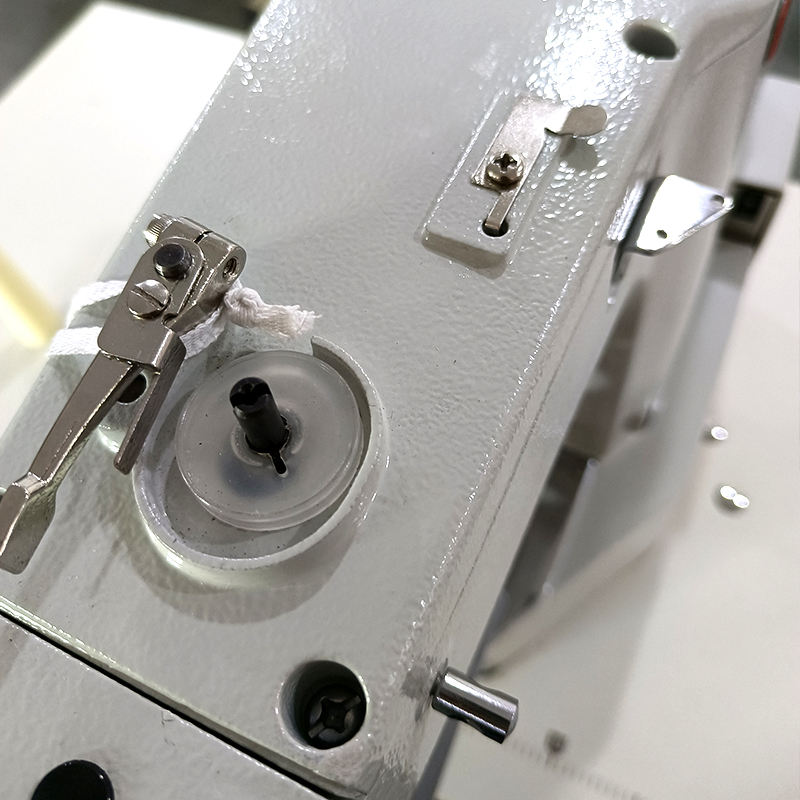

Automatic winding function, with small blade easily bring wire core
Movable pressing foot, sewing different products can be replaced by different pressing foot
|
Product Name |
Set of knot machine |
|
model |
Stitch size |
|
Stitch size |
40*30mm |
|
Sewing speed |
3200RPM |
|
Sewing stitch |
0.1mm-12.7mm |
|

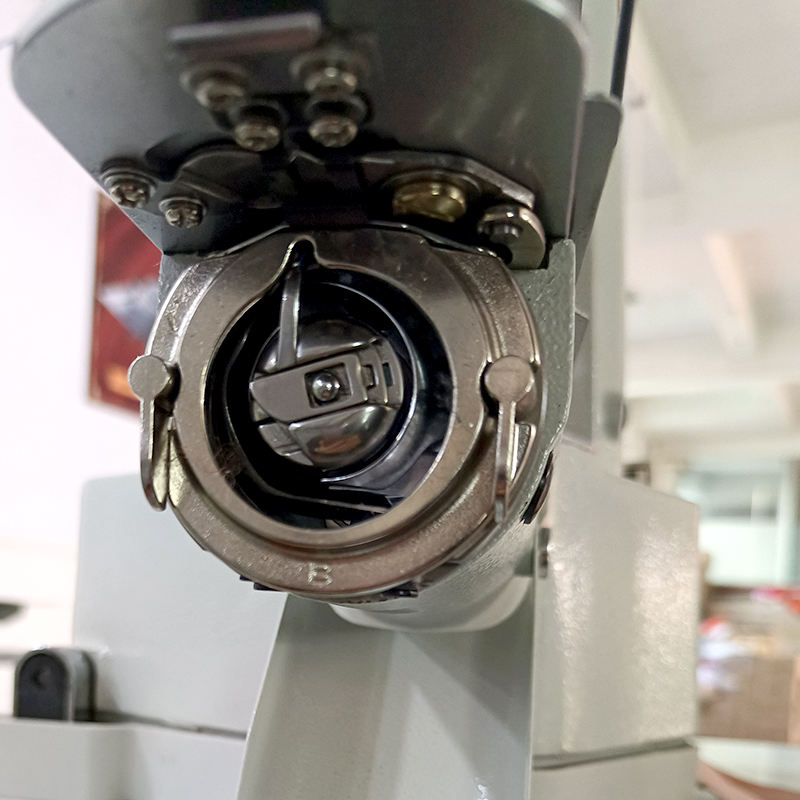

Using the hook |
Pendulum rotary shuttle |
|
Use the needle |
DP*17 |
|
Lifting capacity of presser foot |
17mm |
|
Rated power |
750w |
|
Stitch count |
210000 |
|
The power supply |
AV220V 50/60Hz |
