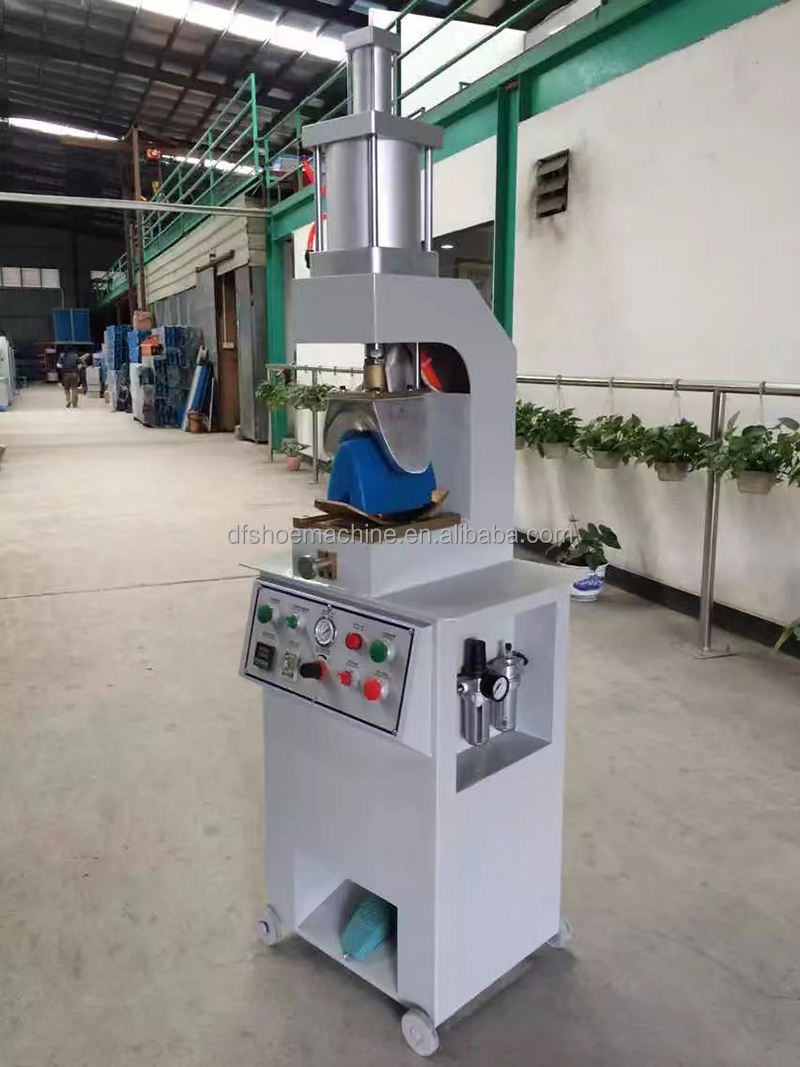

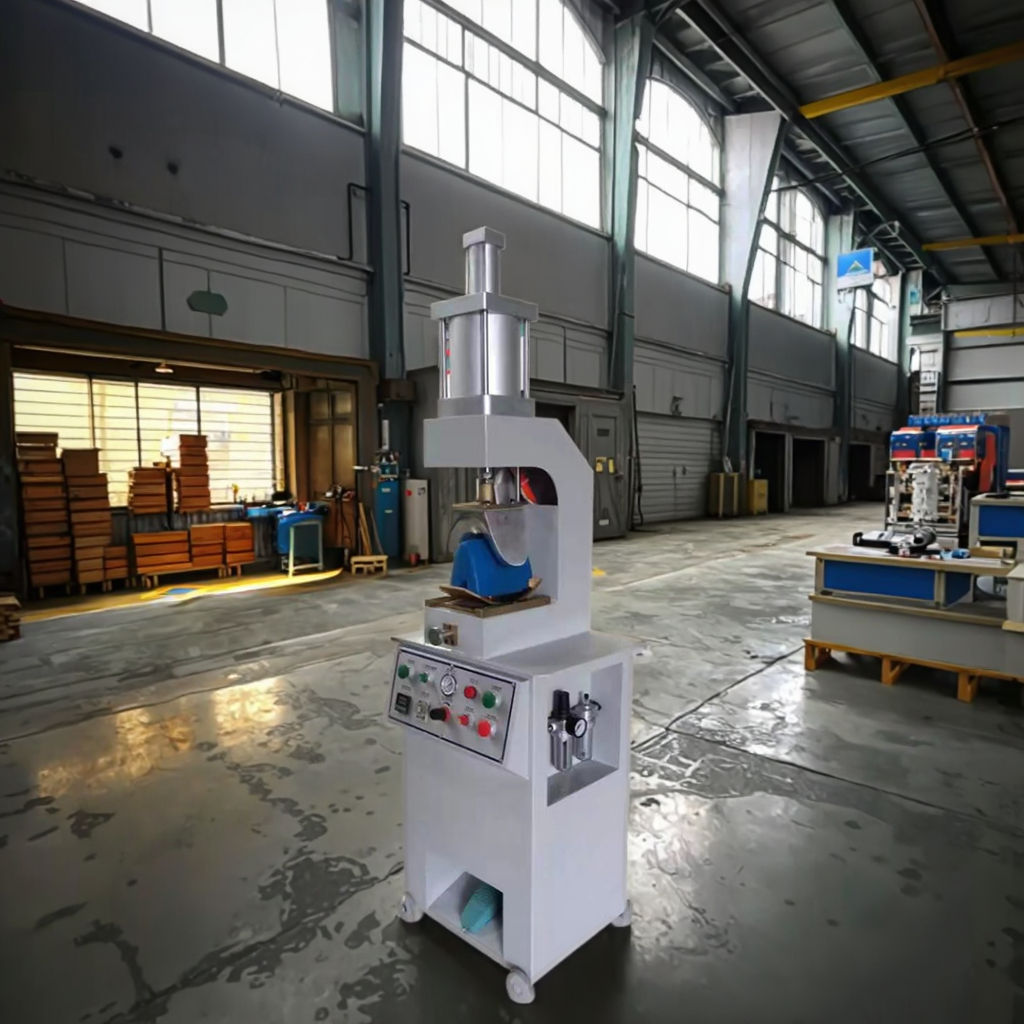

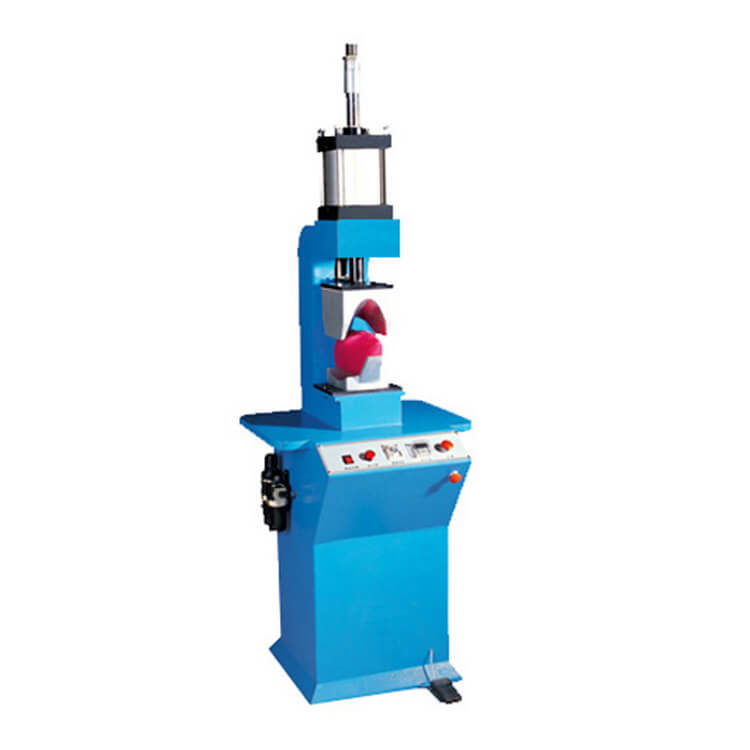

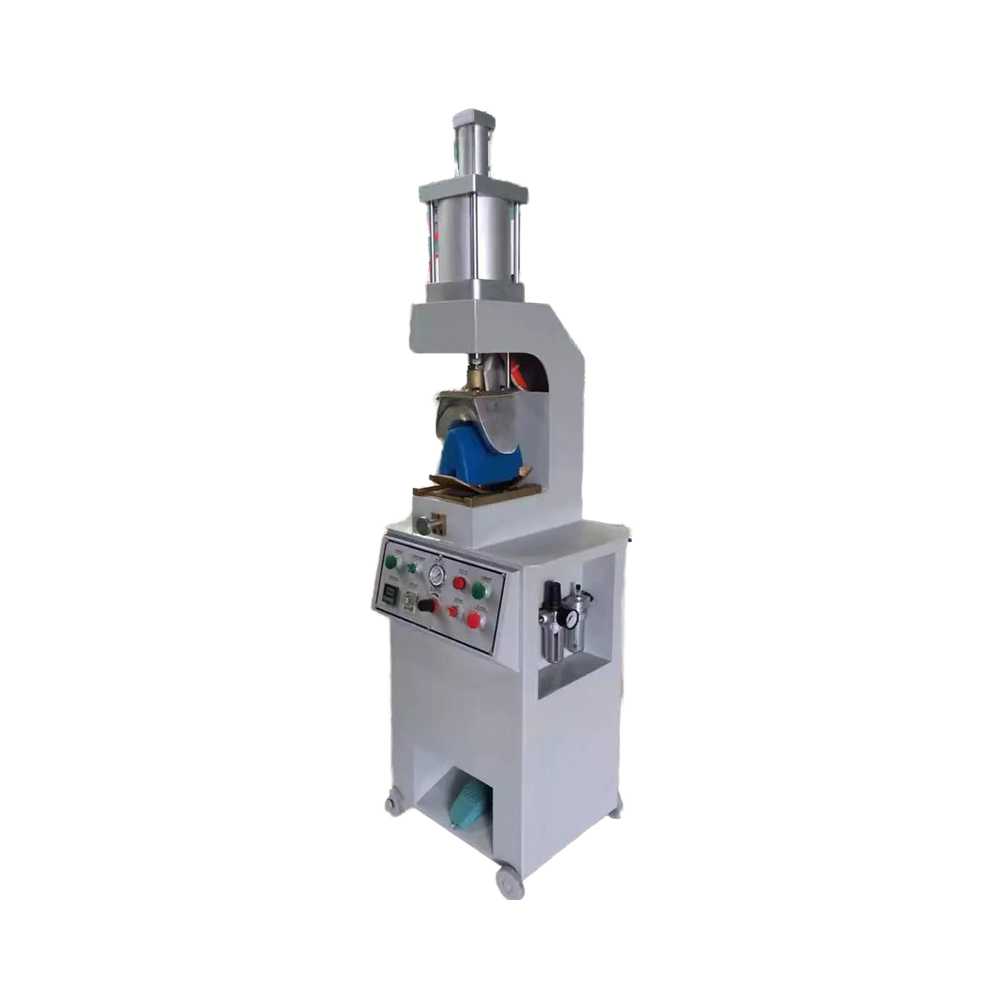

Shoe Upper Making Single Double Heat Press Shoe Vamp Molding Machine for Men and Women Shoes
Shoe Upper Making Single Double Heat Press Shoe Vamp Molding Machine for Men and Women Shoes
Download product catalogue
Purpose:
This machine is designed for shaping the uppers of women's high heels and boots for both men and women prior to lacing. Applied to relatively hard leather and the vamp with big bending degree, easy to attach the vamp to the upper of the shoe, no crease.
Characteristics:
1. This aircraft is suitable for the female high-heeled shoes and the male woman's boot class before forming a group to instep molding work.
2. The jelly mold uses the wear-resisting heat-resisting silica gel; Outside the aluminum mold temperature may reach 200℃.
3. After the molding the unlined upper garment pastes entire close, the corrugation, does not distort, does not bubble, and may reduce the breakage.
4. But the prompt molding pulls, reduces the sample development time, reduces the cost, and can the better satisfied customer request.
5. The shoes back's accurate stereotypical change raises the Productivity.
6. The stamping die may adjust at will achieves the different need the clearance, pastes the shoetree.
|
Model |
Dimension |
Voltage |
Weight |
Heating System |
Air pressure |
|
DF-208S |
700X600X1700mm |
220V/50HZ |
200kg |
1.2KW |
0.6MPa |
|

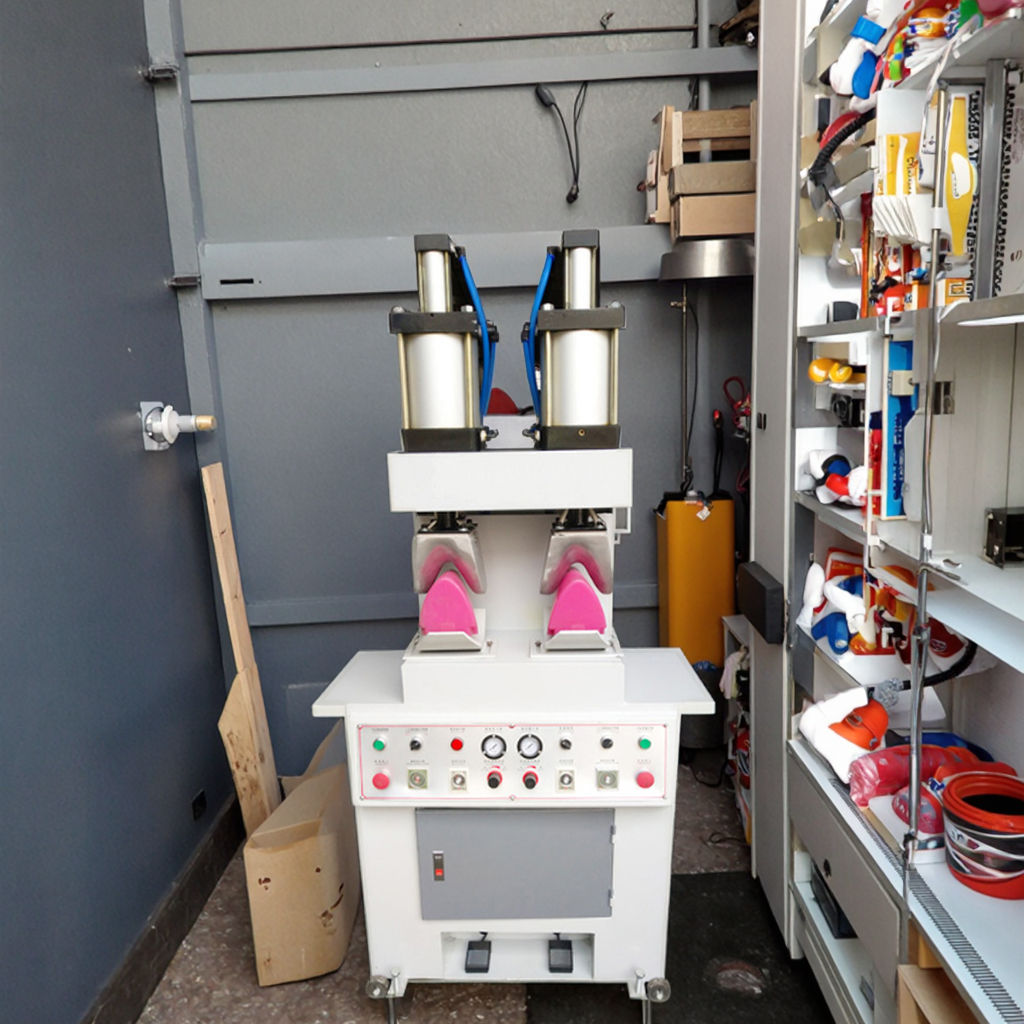

DF-208D |
1400X600X1700mm |
220V/50HZ |
380kg |
2.4KW |
0.6MPa |
