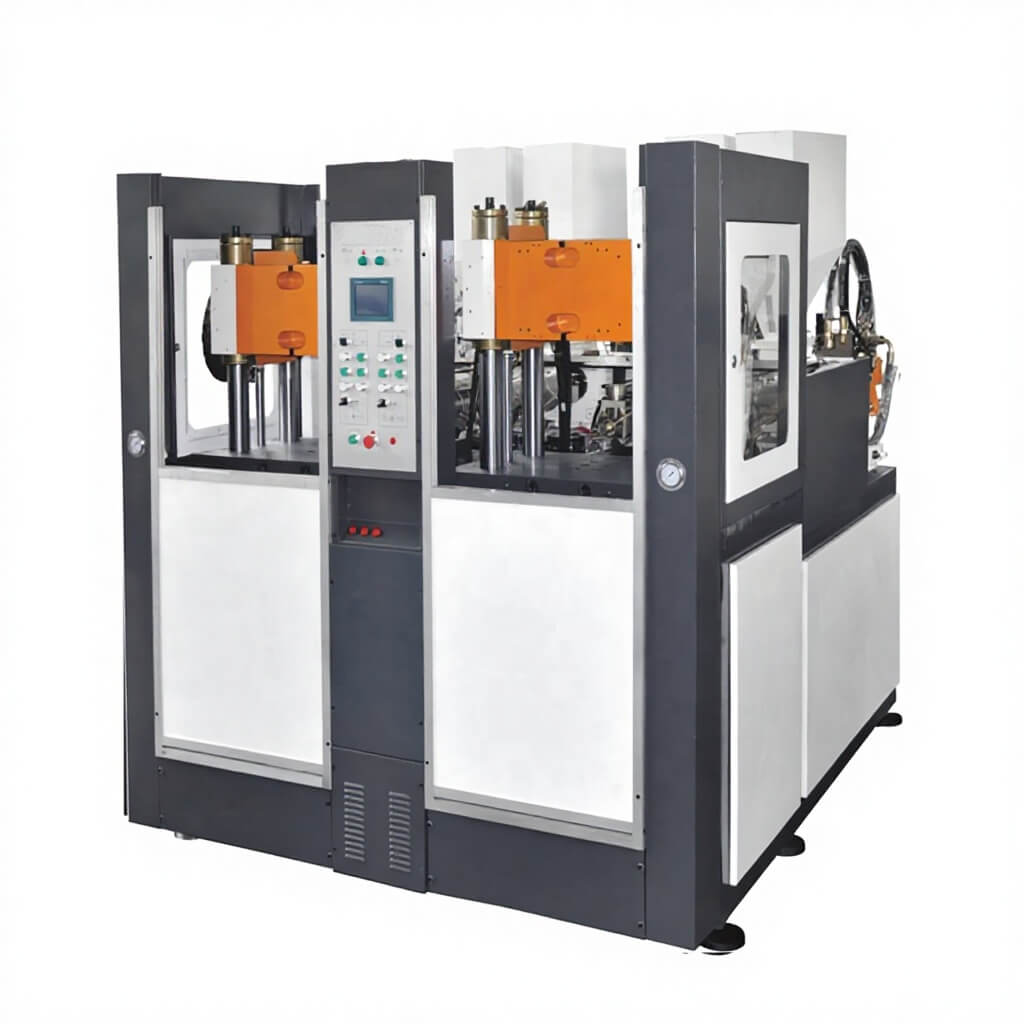

TR/TPR/TPU Shoe Sole Injection Moulding Making Machine
TR/TPR/TPU Shoe Sole Injection Moulding Making Machine
Download product catalogue
Product Description:
Machine Advantage
1.Used for TR TPU PVC TPR material shoe soles.
2.Can use servo motor to save engergy
3.fullautomatic operation can save labor force
4.same operation as tradition italian machine
5.Qualified products
6.Bulk supply
7.Unexperienced workers can also run the production.
8.Convenient maintenance
9. High clamping force 150 Tons makes high quality of sole
Machine Feature:

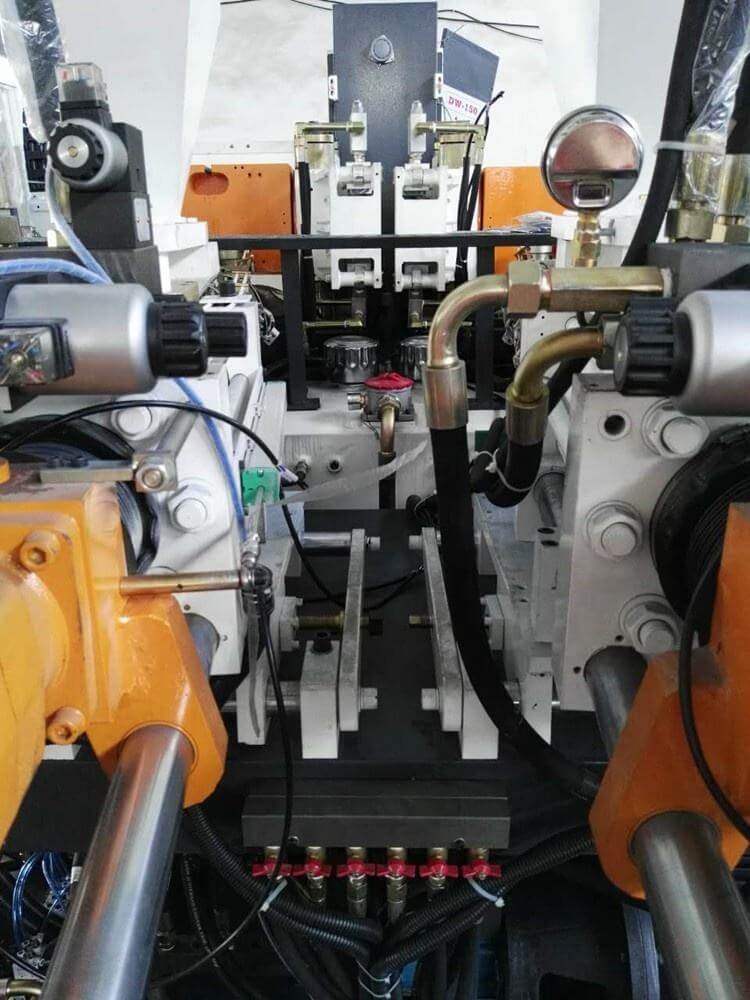

Mold Carrier Unit
1. Mold thickness automatically compensated hydraulic clamping system.
2. Three position (0°-90°) mold rotating head, providing multi mode production capability for single color and two color unit soles.
3. Unique rotating head positioning mechanism, providing precise and fast mold positioning.
4. Upper and bottom molds ejector units for easy, fast and distortion free sole removal.
5. Automatic sliding unit for flexible and easy sole collection and for easy insertion parts placement.
6. Separate blowing system on three faces rotating head and bottom mold plate, providing easy soles and sprue
removal.
7. Suitable for molding TPU in multi-color unit soles by injection system.

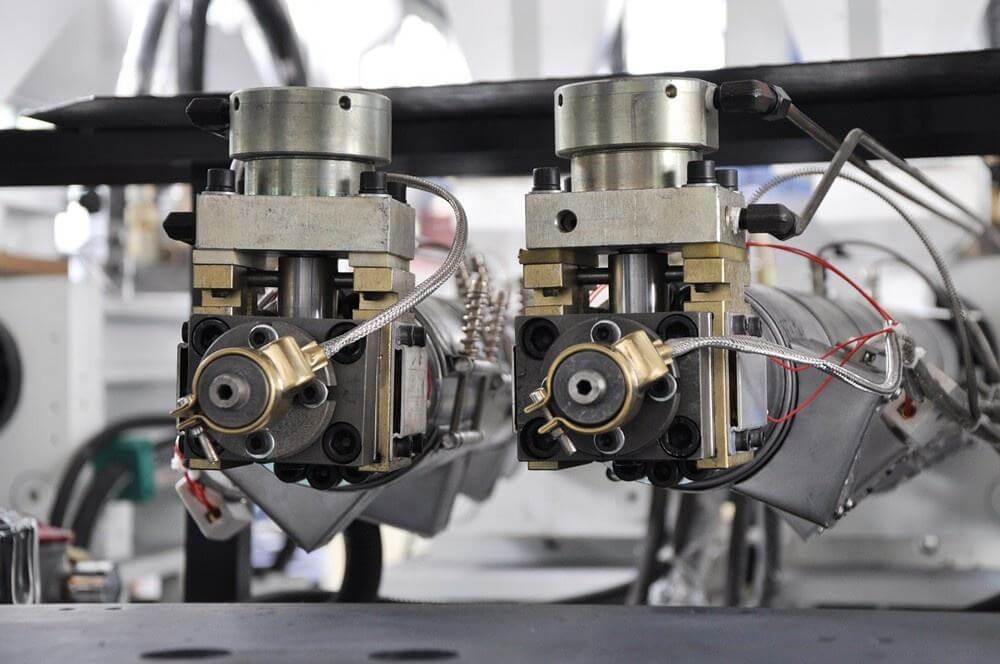

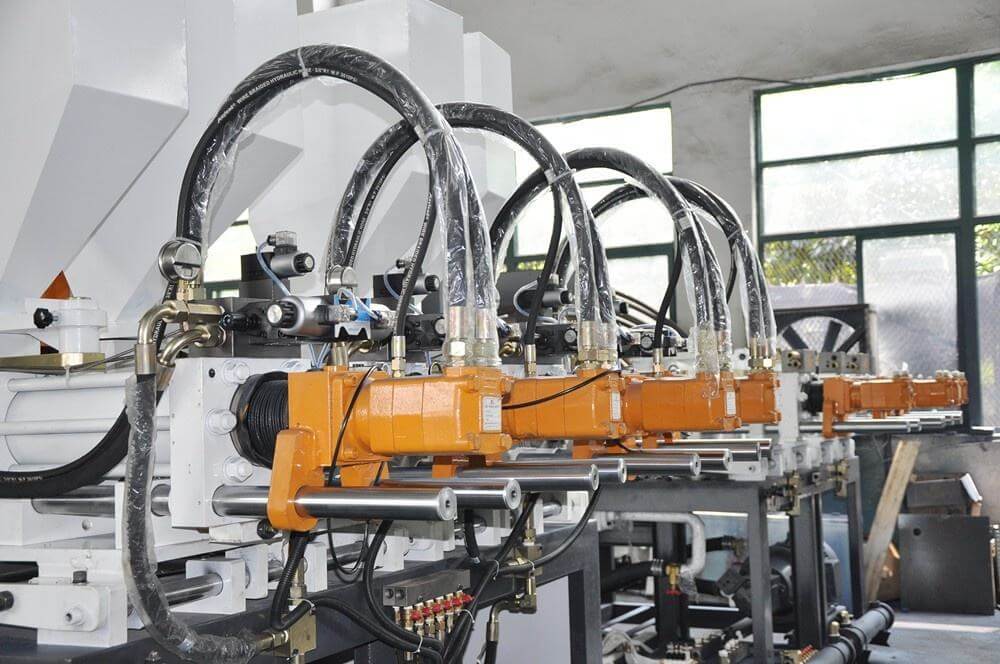

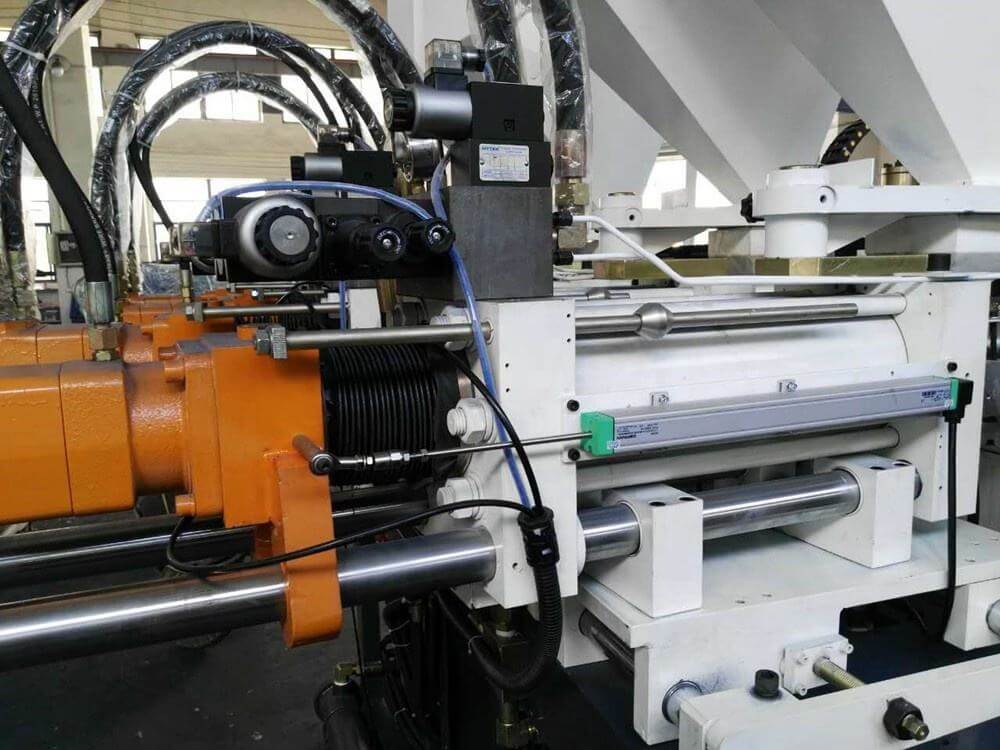

Feeding Unit
1. Electric motor driven injection point height adjustment system, suitable for different size of molds.
2. Adjustment or injection point with horizontal leveling, no material heap at channel or extruders.
3. Precise barrel temperature control with P.I.D. control system.
4. It is easy and fast for material changing with less waste.
Electric Control System
- With self diagnosis analysis system, current status of machine operation can be monitored to insure smoothly
production.
2. Providing with work file records, processing parameters for different molds can be saved with individual files, production is more efficient.
|
MODEL |
UNIT |
DATA |
|
Working station |
station |
2 |
|
Diameter Of Screw |
mm |
Φ65×4 |
|
Clamping Force |
tons |
150 |
|
Mould-opening Stroke |
mm |
370 |
|
Mould Size |
mm |
480×550 |
|
Thickness Of Mould |
mm |
80-200 |
|
Injection Cap.(max) |
cc |
1000 |
|
Total Power |
kw |
38 |
|
Oil Capacity |
L |
600 |
|
Machine Dimension |
m |
2.2×2.7×2.6 |
|
Machine Weight |
tons |
8 |
