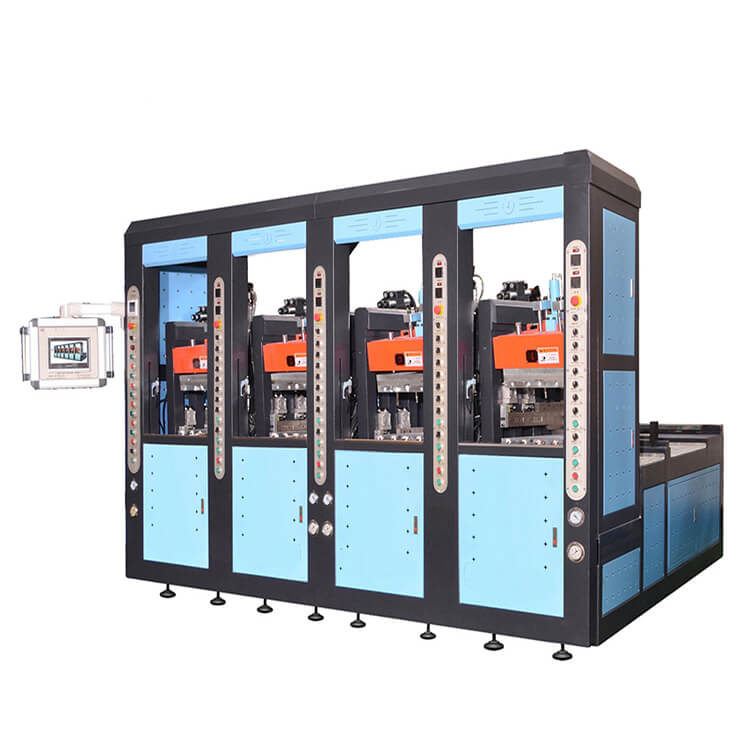

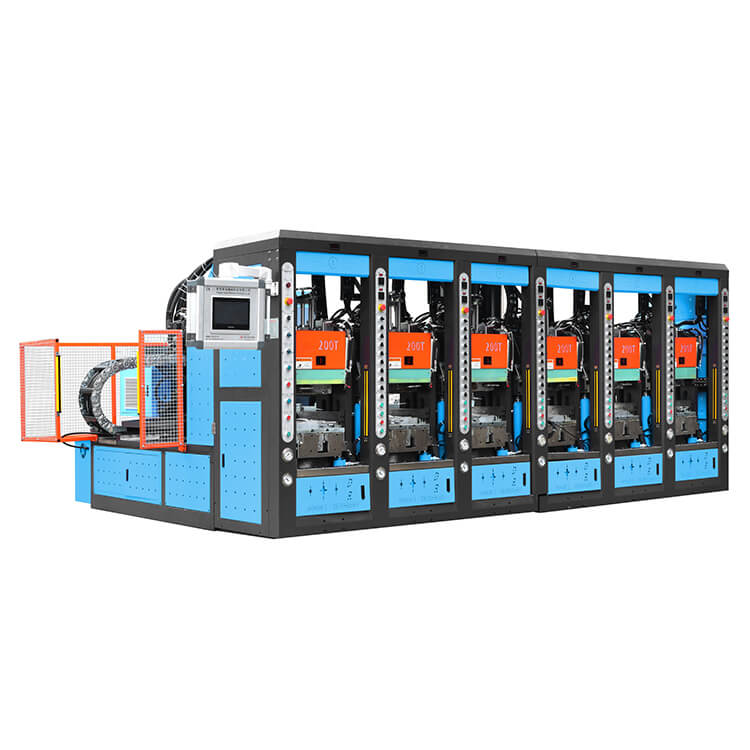

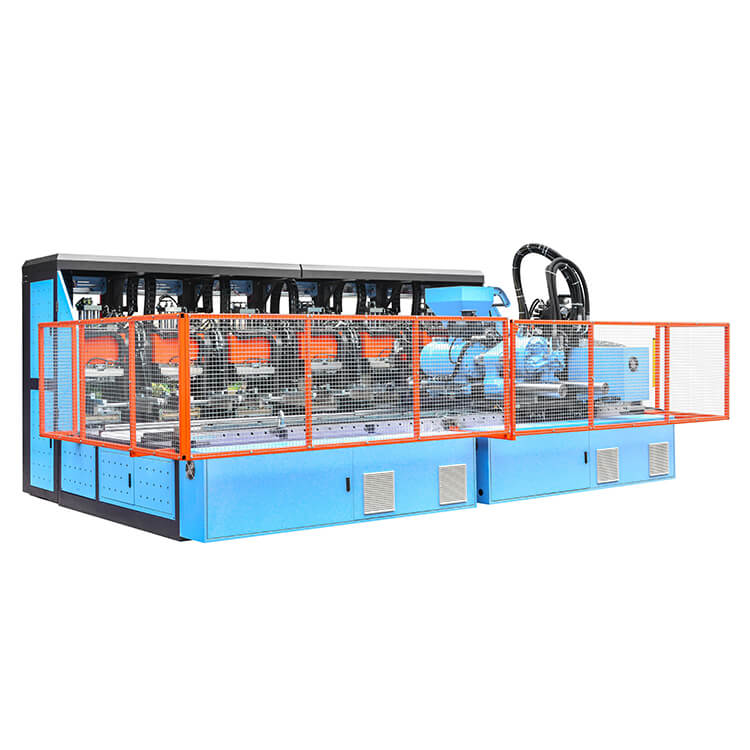

Fully Automatic 2 4 6 Station Single Color Rubber sole Injection Molding Machine One Gun for OutSole Shoes
Fully Automatic 2 4 6 Station Single Color Rubber sole Injection Molding Machine One Gun for OutSole Shoes
Download product catalogue
|
ITEM |
UNIT |
DF-QJ-1C2Z-1 单色1枪旗舰版 |
DF-QJ-2C4Z-1 单色1枪旗舰版 |
|
Number of station |
Station |
2 |
4 |
|
Material |
|
橡胶RB |
橡胶RB |
|
Clamping force |
Tons |
200 |
200 |
|
Mould dimensions |
mm |
450*400 |
450*400 |
|
Color divider lift stroke |
mm |
200 |
200 |
|
Color separator back draw stroke |
mm |
500 |
500 |
|
Uhito tops out the stroke |
mm |
150 |
150 |
|
Middle frame opening and closing stroke |
mm |
250 |
250 |
|
Sliding stroke of lower die |
mm |
300 |
300 |
|
Mould height |
mm |
50-250 |
50-250 |
|
Maximum die spacing |
mm |
290 |
290 |
|
Argles of rotating head |
|
0°-90° |
0°-90° |
|
Number of feeding unit |
No. |
1 |
1 |
|
Screw diameter |
mm |
Φ65 |
Φ65 |
|
Screw speed |
RPM |
0-120 |
0-120 |
|
Screw lengthdlameter ratio |
L/D |
1:13 |
1:13 |
|
Capacity |
Pair/h |
单色single color 150-280 双色double color 150-200 |
单色single color 150-280 双色double color 150-200 |
|
Max.injection volume |
cm3 |
1400g |
1400g |
|
Max.injection pressure |
Kg/cm |
2863 |
2863 |
|
Auto thermo controller |
Sets |
12+1 |
12+1 |
|
Motor |
kw |
22+11=33 |
22+11=33 |
|
Vacuum pump power |
M3/h |
100 |
100 |
|
Power of mold temperature machine |
kw |
3 |
3 |
|
|
|
√ |
√ |
|
Lighting ventilation |
|
√ |
√ |
|
|
Mm/h |
15°-20° |
15°-20° |
|
Heating bands power |
kw |
14+3=17 |
27+3=30 |
|
Total electric consumption |
kw |
35 |
60 |
|
Mode of movement |
|
伺服+导轨横向移动 Servo + guide rail lateral movement |
伺服+导轨横向移动 Servo + guide rail lateral movement |
|
Measurement(L*W*H) |
mm |
2000*3432*2100 |
3400*3432*2100 |
|
Weigt(Approximate) |
Tons |
7.8 |
12.8 |
|
|
备注：1.全伺服动力系统可节电30%-50% ，整机配件保修12个月. Note: 1. The full servo power system can save 30% to 50% of electricity, and the warranty for all machine parts is 12 months. |
||
