Pneumatic Automatic Rubber Sneaker Iron Fox Vacuum Shoe Sole Attaching Pressing Machine

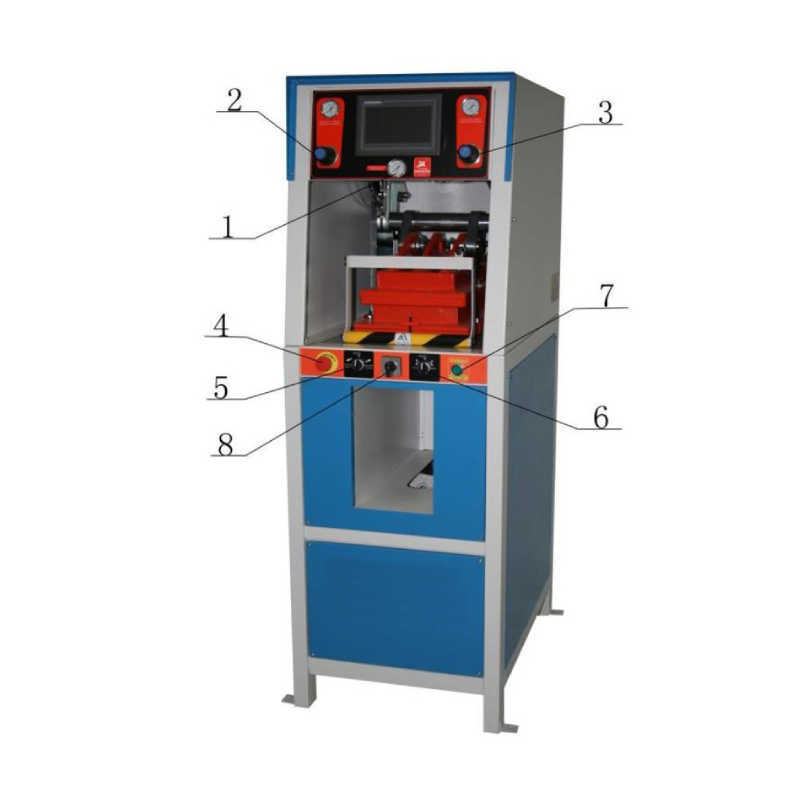

Pneumatic Shoe sole pressing Attaching Machine
Feature:
1) This machine has the function of adjusting the height of shoes, and the operation method is completely in line with safety standards. Just press the "STOP" button, and the safety program in the machine will open the door to avoid any accidents.
2) The operation mode of this machine is to put the shoes upside down on the preset position with the outsole up, and it can be adjusted in advance, with "automatic" and "manual" functions.
3) Automatic function: put the shoes in the correct position, when the hand leaves the work area, the upper cover will be closed automatically, and the air will enter at the same time, and the machine will automatically act according to the pre-set time.
4) Manual function: put the shoes in the correct position, when the hands leave the work area, press the operation button with both hands, and the subsequent operation procedures are the same as the automatic function.
5) This machine is widely used for men's and women's sports shoes, casual shoes, and other rubber outsole shoes with regularity or smoothness. This machine is a pneumatic machine and is controlled by PLC program.
| Model | Net weight | Gross weight | Size | Power | Voltage | Yield |
PLC |
|
DF-586N |
290KG |
340KG |
950*700*1780mm |
0.2KW |
220V |
1000Pairs/8H |
Plc control |
