Automatic Hydraulic Shoes Side and Heel Seat Lasting Machine

Download product catalogue

shoe auto computerized heel seat lasting machine

This machine can make the shoes side and rear parts of the lasting jobs once completed.

the PLC system is equipped with the touch screen to operate the machine with the graphical symbols.

the setting of the parameters (time and stroke) is by numerical key in.

With the protection of the key switch to avoid the reading or changing by the non authorized. error diagnostic readable on touch screen.

The heel band is transmitted by the chain mechanism.

heel lasting device. vertex cylinder using two sensors, the machine operation safer.

The machine can save labor 4-6. Hydraulic and pneumatic operated system.

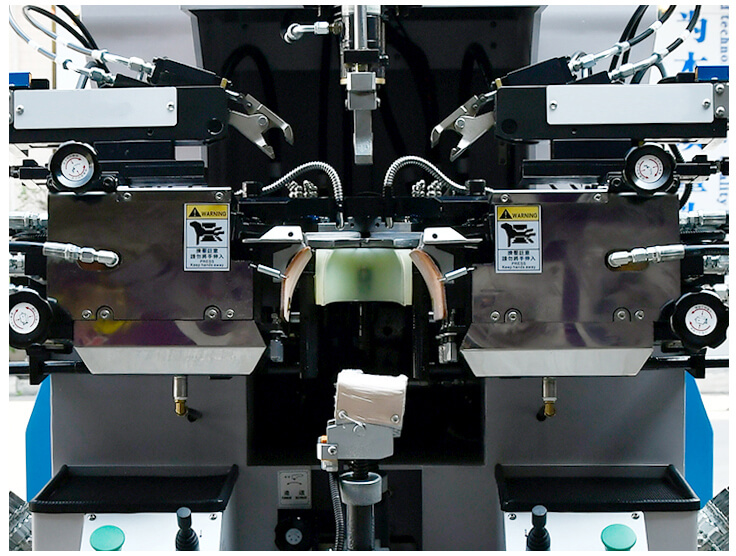

The side lasting device is equipped with four fingers lasting structure, with the designed function for the overlapped lasting area with heel lasting device.

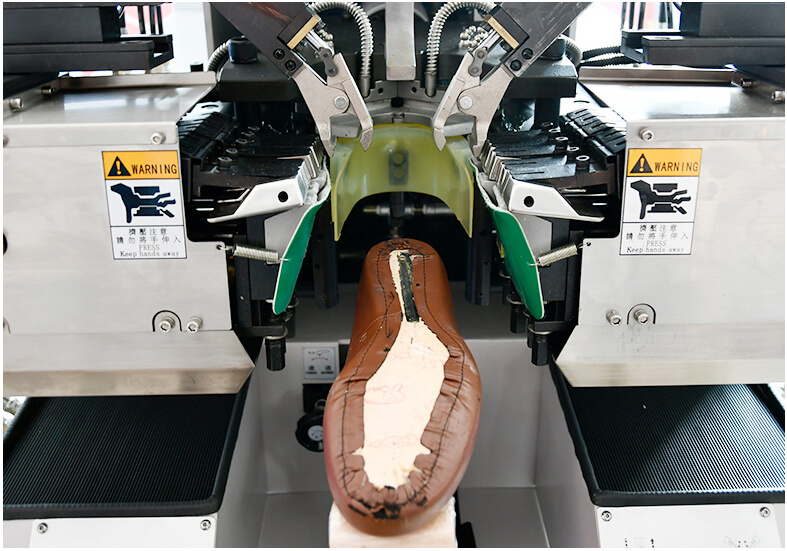

The finger lasting mechanism is designed with the adjustable left and right balance, also the two step operation pressure setting. Two pincers are provided to achieve a special counter pull in side and heel area.

The machine can be independent setting left and right pincers pulling quantity with manual and automatic，the tightness of upper is natural distribution。

Pincer inward pulling the upper after clamp the upper，to make the inside quarter of upper attach the last tightly。

Independent claw upward pull: The manual and automatic pulling amounts of the left and right claws can be individually set.

The tightness of the shoe upper reaches a natural distribution. Middle and rear heel overlapping connection:

The connection between the middle heel and the rear heel is smooth and continuous.

The movement is seamless. Foot mold type claw inward pull function: After the claws pull the shoe upper tight, they further pull inward to make the inner waist of the shoe upper more closely adhere to the mold head. Encoder controlled middle heel connection: The shoe fabric glue trajectory control and finger insertion are more accurate and precise.

Electric claw position adjustment: By touching the switch, the claws can be electrically moved to the optimal gripping position, providing appropriate pulling force.

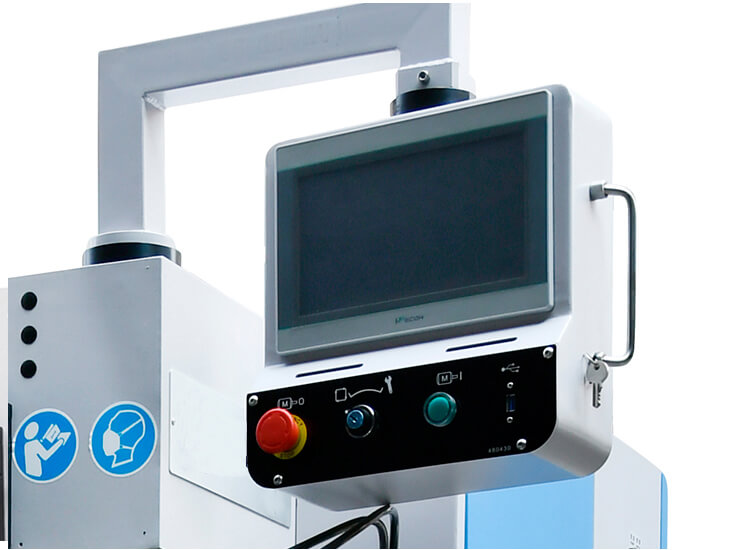

Touchscreen human-machine interface: The user-friendly control device integrated on the screen, making operation and maintenance convenient.

Elastic tensioner up and down movement: Automatic balance and blade spacing adjustment, ensuring a stable and solid rear heel connection effect.

Computerized action circuit control: The PLC action changes are flexible and precise, making fault diagnosis easy.

Electric tensioner front and rear adjustment: The tensioner position is adjusted electrically, highlighting the implementation of the user-oriented design concept.

Operation parameter memory and archiving: Up to thirty sets of timers and action parameters can be memorized, facilitating the change of shoe styles.

Separate middle heel finger mechanism: Combined with a unique oil circuit design, the inner waist adheres to the mold head tightly and perfectly.

Mechanical Dimensions Intelligent automatic fault detection function: Timely provides warnings for possible fault points, making maintenance convenient and fast.
