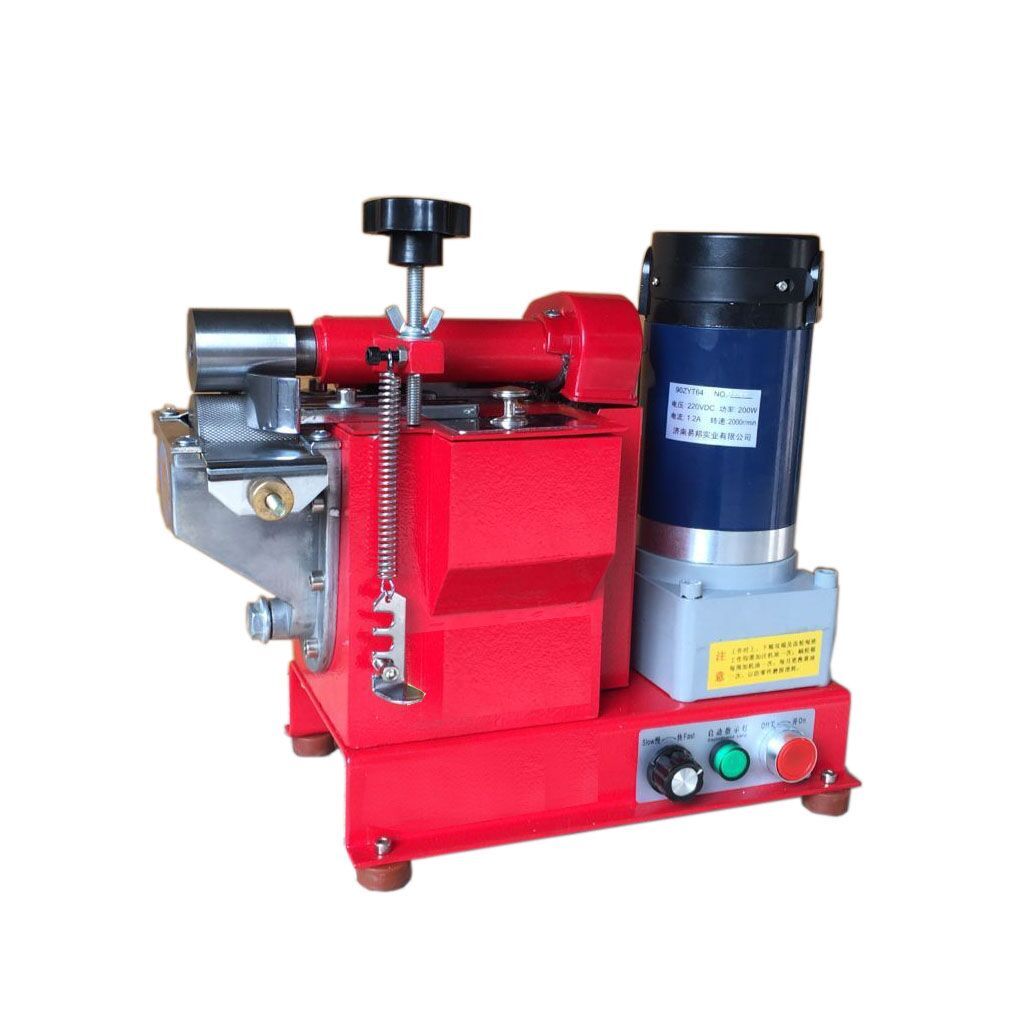

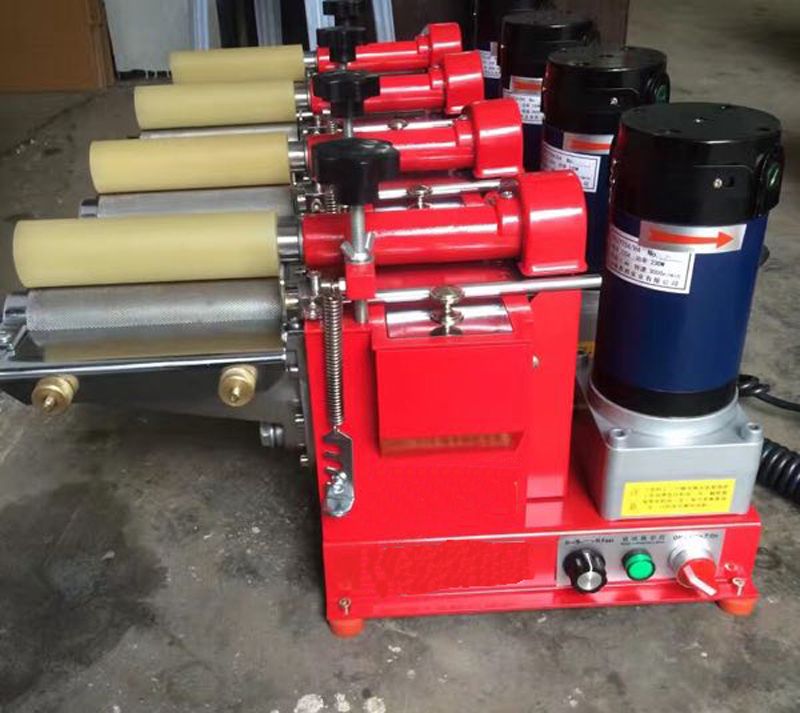

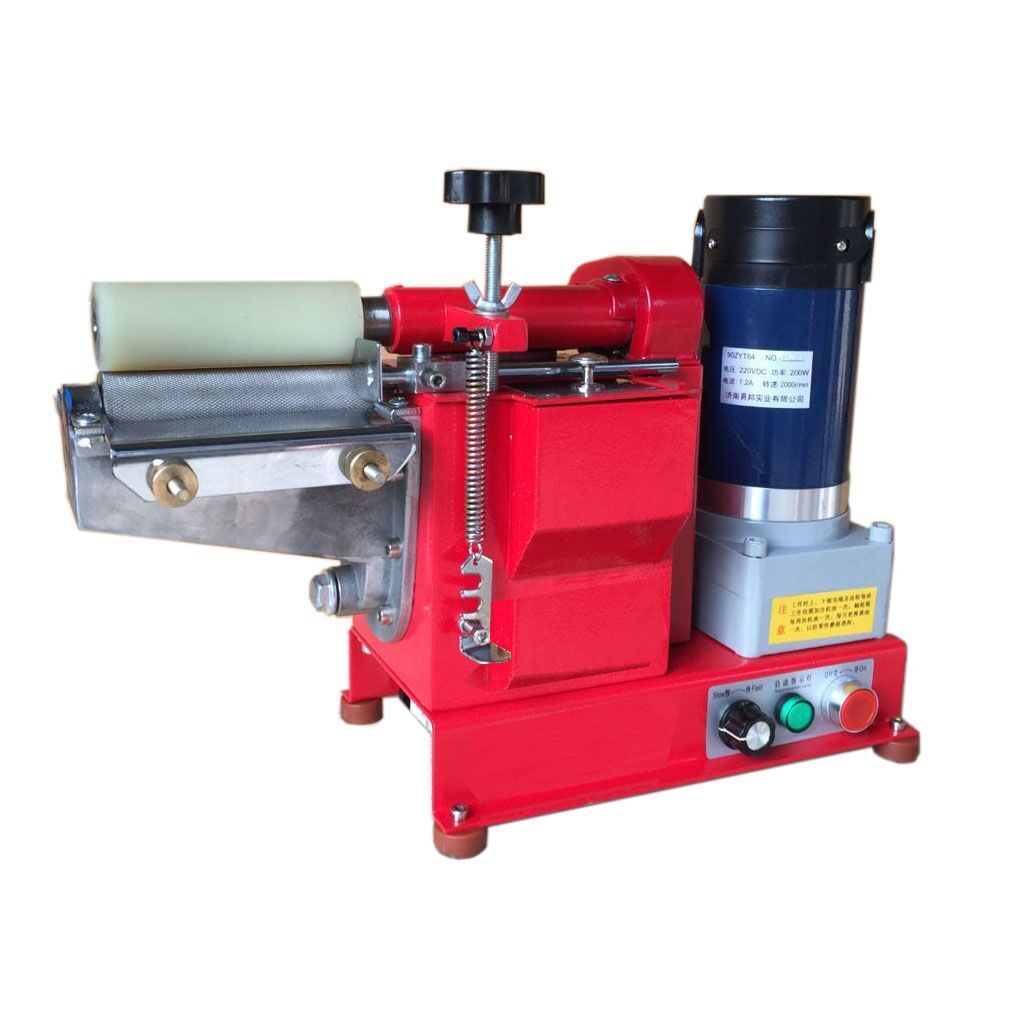

Sport Shoe Leather Insole Strong Force Small Manual Gluing Glue Shoe Making Machine
Sport Shoe Leather Insole Strong Force Small Manual Gluing Glue Shoe Making Machine
Strong glue edge coating machine is a shoe leather mechanical equipment. This machine adopts mechanized operation. It is used to apply strong glue around and on the surface of leather goods, zippers, bags, soles, soles, strips and other materials.
The automatic circulation device and sealing design of the machine can avoid the precipitation and volatilization loss of strong glue. The thickness of work materials and the uniformity of glue amount can be adjusted at will. The edge gluing width is positioned by the material guide and is uniform. The rotary roller is installed to make the work materials with sole, midsole and round edges turn back automatically, and implement peripheral or semi peripheral automatic gluing.
|
Gluing speed |
Gluing scope（MM） |
Outline dimension(mm) |
Weight(KG) |
|
|
|
Speed-regulating motor 180W |
|||
|
m/min 11 |
m/min 0-13.5 |
45 |
370*190*310 |
24 |
|
75 |
400*190*310 |
25 |
||
|
120 |
450*190*310 |
27 |
||
|
150 |
480*190*310 |
28 |
||
| Model | DF-326-45 DF-326-75 DF-326-120 DF-326-150 | |||
| voltage | AC220V/AC380V | |||
|
Note |
The power of motor and gluing scope subject change to meet the customer’s requirement, we also provide machine with special requirement. |
|||
