Automatic Rotary Vacuum Heat Setter Machine Shoemaking Heating Setting Forming Machine
Automatic rotary Vacuum heat setter machine shoe heating setting machine shoemaking forming machine

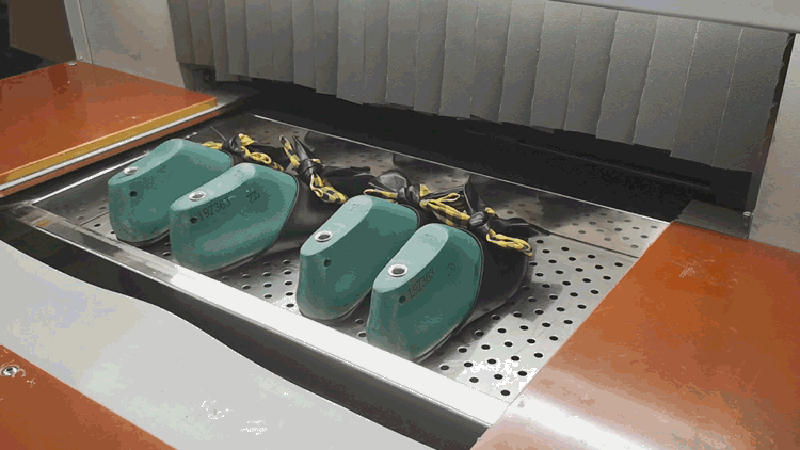

This machine is suitable for heating, shaping and softening of all kinds of shoes and leather, with high temperature steam. After the upper is finished, it uses high temperature steam and dry hot gas to soften the shaping upper with high efficiency, so as to achieve the effect of rapid prototyping. This equipment is energy-saving, easy to maintain, and the computer system touch screen is set and operated. The use of this machine can save electric energy and last. The special stainless steel hot chamber makes use of the high-speed convection of hot air and steam to eliminate the internal stress of the upper surface and make the upper surface more close to the last. It completely changes the unscientific baking process of the traditional shaping heating parts directly on the upper surface, so as to avoid the disadvantage of damaging the original flexibility and gloss of the upper surface due to baking. It is equipped with adjustable temperature controller, which can be adjusted to the best use temperature according to the shoe material. Use the timer to adjust and control the speed.
|

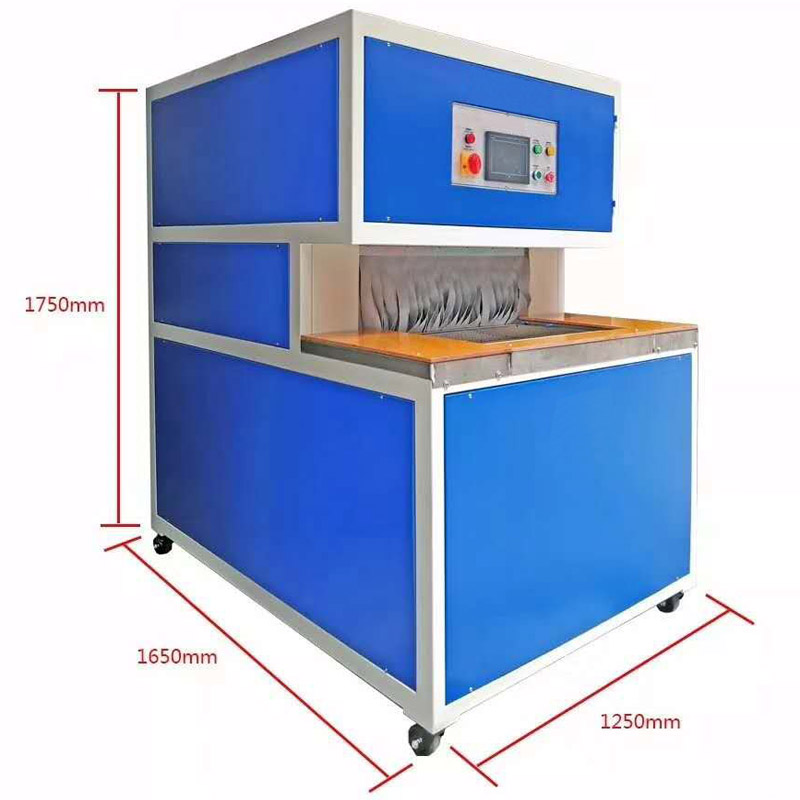

MODEL |
Dimensions(LWH) |
Packing size(LWH) |
Weight |
Production |
Power |
Voltage |
|
DF-139 |
1250*1650*1750 |
1350*1750*1880 |
800kg |
800Pairs/8H |
9KW |
380V |
