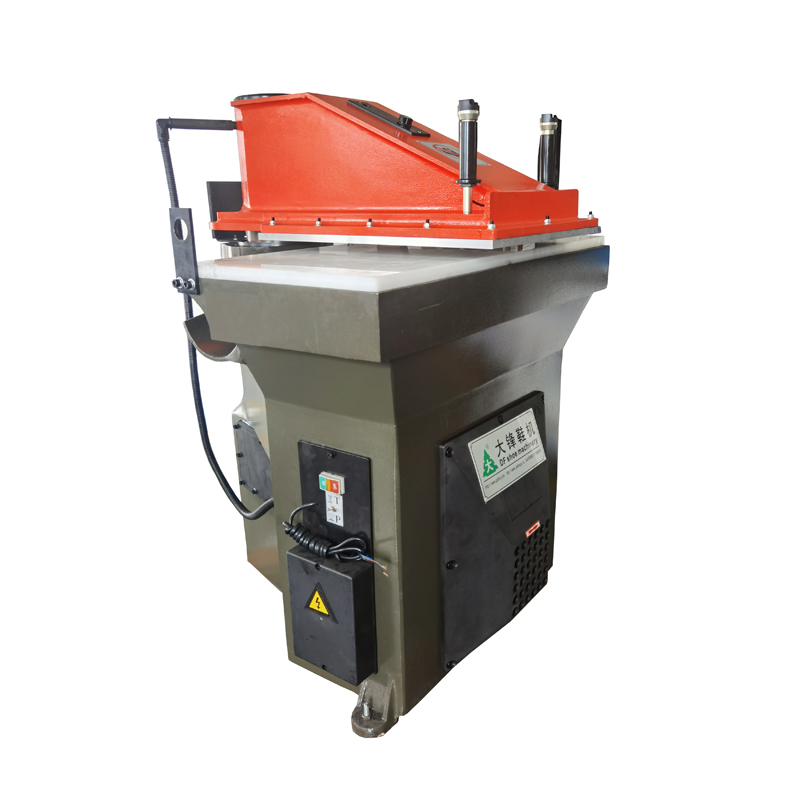

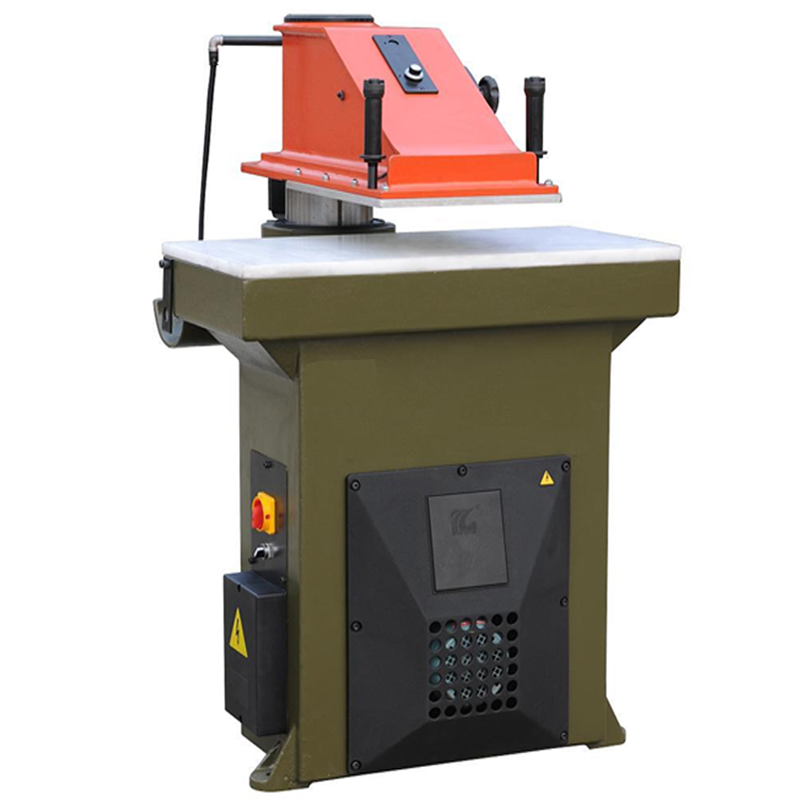

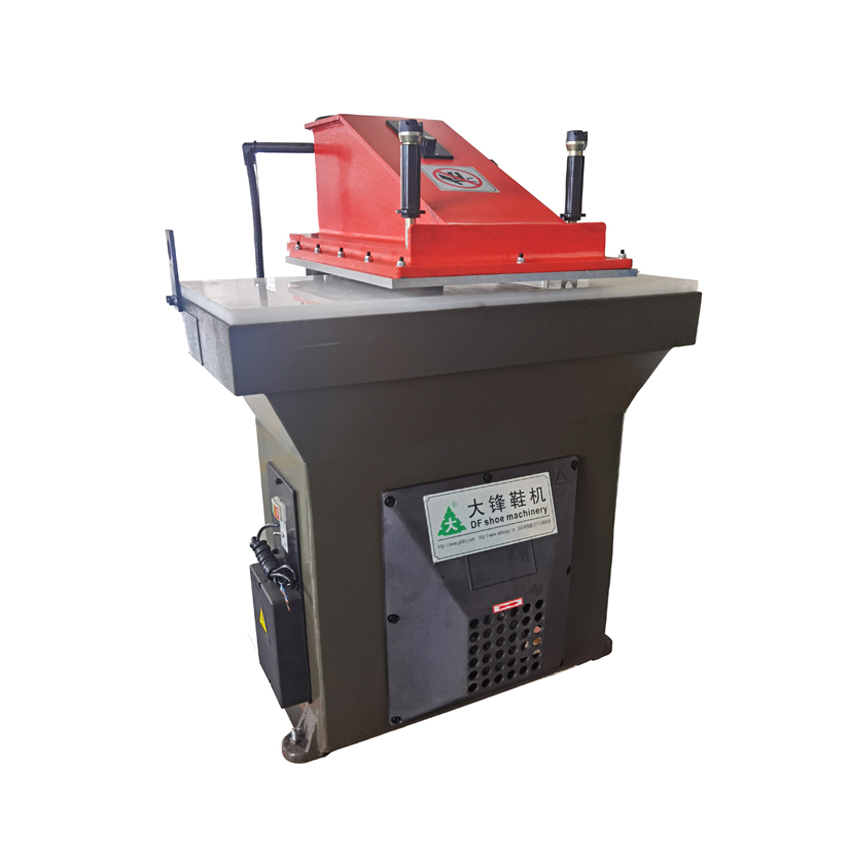

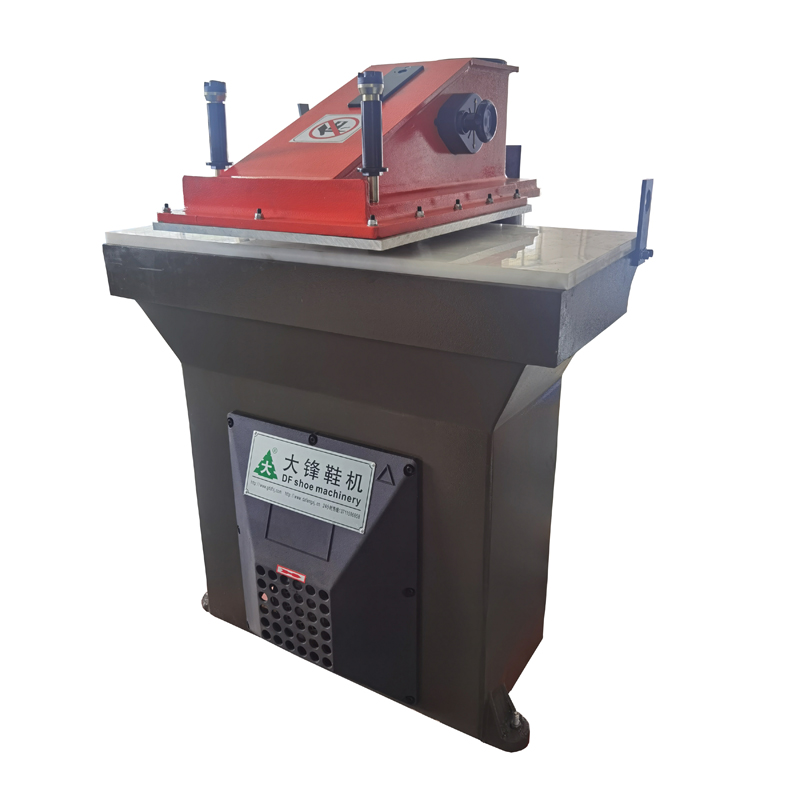

Hydraulic Swing Arm Leather Clicker Press Die Cutting Press Machine
Shoe Hydraulic Swing Arm Leather Die Cutting Press Machine Clicker Press Machine
Hydraulic arm swing leather cutting press machine for Leather Production cutting Machine
TECHNICAL FEATURES：
◆Special hydraulic system, high speed , low noise, low temperature of oil.
◆The pressing button is serviceable.
◆Save power, the power is 0.75kw; Install the protection for motor.
◆Save manual power, easy to operate, safe, fast, low breakdown.
◆Two kinds of cutting setting, convenient and accurate operation.
|
Model |
Max cutting force |
Table area |
Swing arm width |
Cutting atroke |
Motor Power |
Supply voltage |
Packing size |
N.W |
G.W |
|
DF-626A |
22T |
900*430mm |
370mm |
5-75mm |
1.1kw |
3Ø380V/50Hz |
1050×1000×1500mm |
650KG |
880kg |
|
DF-626B |
27T |
1000*500mm |
400mm |
90mm |
1.5kw |
3Ø380V/50Hz |
1150×1200×1500mm |
950KG |
1100kg |
