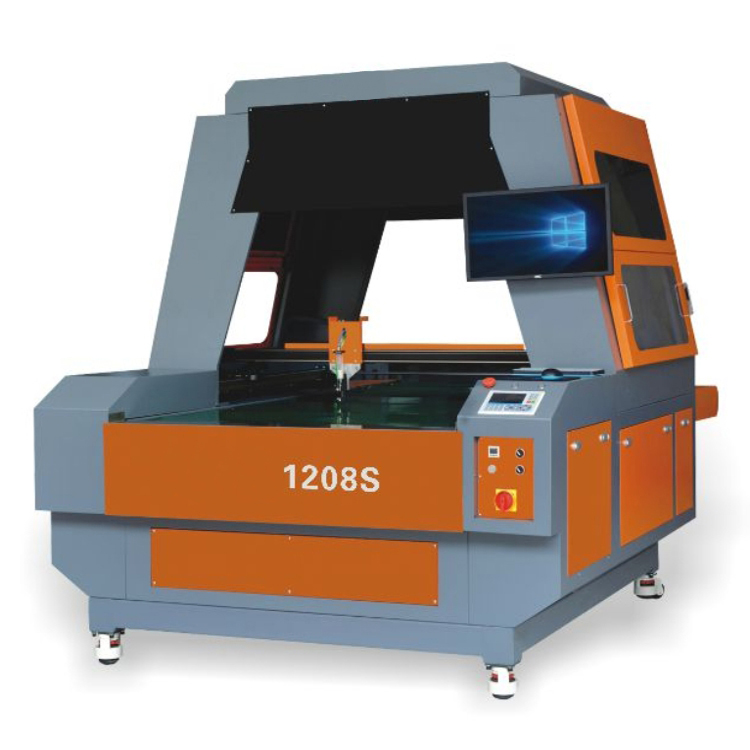

Leather Automatic Intelligent Vision Digital Smart Shoe Vamp Marking Line Drawing Machine
Leather Automatic Intelligent Vision Digital Smart Shoe Vamp Marking Line Drawing Machine
Download product catalogue
·Working principle: high definition industrial cameras are used to collect intelligent positioning, automatically identify the material contour, accurately and quickly automatically locate the line drawing graphics and perform the line drawing task
Features: the machine has the recommended advantages of process, environmental protection and improved efficiency. Double ends can be processed at the same time
·Efficiency: 2000-5000 tablets / hour
·Production capacity: 2000-5000 pieces / hour, which can save 3-5 workers
·Energy saving: power supply: 3 ℃ / h air pressure: 0.3-0.8MPa
·The degree of automation, the machine equipment adopts various high-precision feeding, detection and vision systems, which can ensure the high precision of cutting
·Use limitation: the accuracy of the cutting piece, the regularity of the cutting piece, and no great impact on the working area
·Double head line drawing machine: the output is 2000-5000 / hour, one equipment saves 3-5 workers, and adopts automatic identification, automatic matching and automatic edge grasping to ensure that the qualified rate of products is 100%. The hardware is Panasonic servo, drive, Taiwan CSK guide rail, slider, Japan NSK bearing, Italy Yitai transmission belt and Italy SMK customized spray gun, Italian imported solenoid valve gun head (more than 30 dB), independent research and development of patented system (personalized service for manufacturers)
Single head line drawing machine on the market: 1000-2500 / hour, saving one equipment, 2-3 workers adopt automatic equipment, automatic matching, low qualification rate, low hardware, software can not be controlled automatically, and the noise of pneumatic gun head is too loud (more than 50 dB)
1.This machine is suitable for high-precision line drawing processes before sewing various shoe materials (PU, microfiber, genuine leather, fabric, etc.).
2.Fully automatic assembly line operation replaces traditional processes such as manual line drawing and screen
printing high efficiency, energy savings and environmental friendliness.
3. Utilizing servo motion modules, it achieves high speed, high precision and low failure rate.
4.Equipped with imported ink-jet heads, featuring fine spraying points and a standard sustainable ink supply system, saving consumables.
5.Several high-resolution industrial cameras combined with a visual computing system enable autonomous recognition and precise
positioning for automatic line drawing for both thick and thin materials.
6. Compared to trajectory-based line drawing, the dot ink-jet printing mode offers faster speed and higher precision.
7. The material collection platform comes with a standard drying system to ensure material quality.
·Scope of application / process: 1100 * 800 (mm)
|
Machine Model |
DF-1280D |
DF-1280K |
|
Maximum Line Width |
1200*800 |
1200*800 |
|
Maximum Profile Size |
L3300*W2100*H2200 |
L3300*W2100*H2200 |
|
Total Weight |
1100KG |
1100KG |
|
Fast Line Drawing Speed |
500-1200mm/S |
500-1200mm/S |
|
Line Drawing Accuracy |
±0.10 |
±0.10 |
|
Rated Power |
9KW |
9KW |
|
Power Supply |
220v |
220v |
|
Pressure |
0.4-0.8Mpa |
0.4-0.8Mpa |
|
Work Environment |
Temperature 10-45 ℃, humidity 30% - 65% |
Temperature 10-45 ℃, humidity 30% - 65% |
|
Printing Ink |
High temperature vanishing pen / water vanishing pen / mercury pen |
High temperature vanishing pen / water vanishing pen / mercury pen |
|
ink Color |
White / Blue / yellow / red |
White / Blue / yellow / red |
|
Desktop Computer |
I5-7500CPU 2G independent graphics card, 8g memory, 120g solid state disk, 21 inch display |
I5-7500CPU 2G independent graphics card, 8g memory, 120g solid state disk, 21 inch display |
