Goodyear Shoe Making Double Needle Welt Sewing Machine For Making Shoes
Goodyear Shoe Making Double Needle Welt Sewing Machine For Making Shoes
| Model | DF-619 |
|
Sewing speed |
Stepless speed regulating |
|
Sewing thread |
Compound thread or linen thread |
|
Stitch length |
4-12mm |
|
Sewing thickness |
3-8mm |
|
Welt |
Leather/plastic |
|
Sewing needle |
255#good-year needle |
|
Motor |
750W/ 220V one-phase 50-60hz |
|
Net weight |
400Kg |
|
Domestic packing gross weight |
about:440Kg |
|
Domestic packing parameter |
86*105*199(L*W*H) cm |
|
Exportation packing gross weight |
474Kg |
|
Exportation packing parameter |
83*108*190(L*W*H) cm |
|
Characteristics: |
|

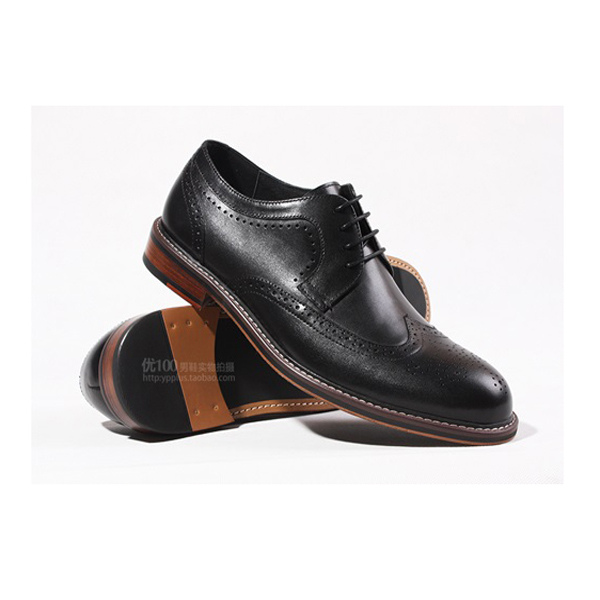

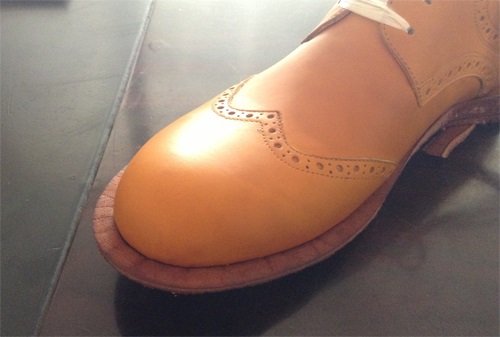

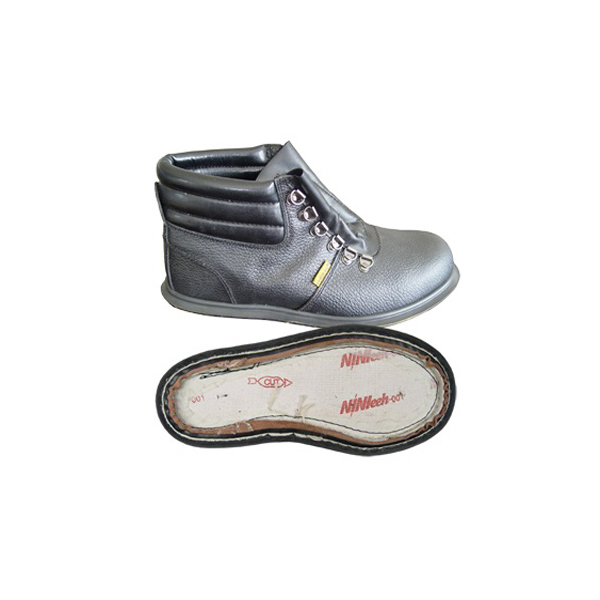

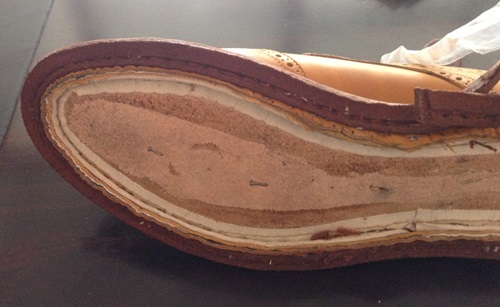

1.Suitable for sewing various style of various specifications of welt structure shoes, especially suitable for Goodyear shoes welt sewing. |
|
2. All parts were manufactured by HAAS CNC machines, high precision machining parts. |
|
3. Machines automatic oiling and durable. |
|
4. Using electronic speed motor speed can be flexible, stop the needle position by computer control. |
|
5. In the event of an emergency, the machine stops running to prevent damage when the threads are jammed. |
|
6.Good structure design and operation is simple and efficient. |
|
7.In the event of an emergency, the machine stops running to prevent damage when the threads are jammed. |
